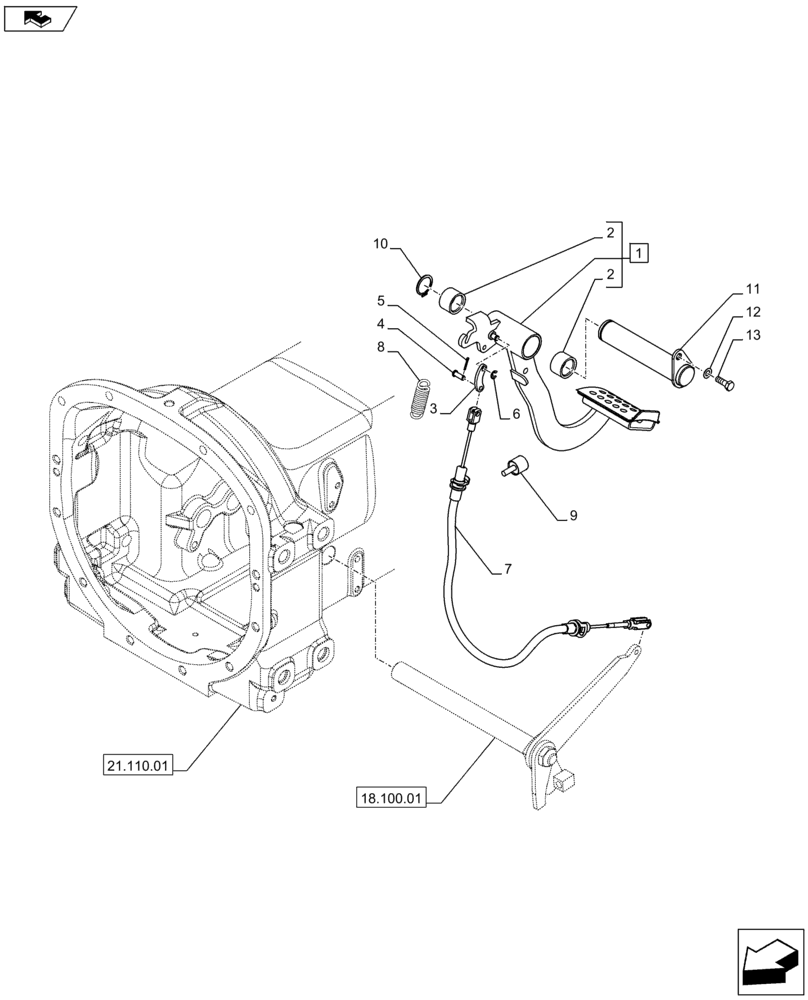

Запчасти Case IH FARMALL 75C (18.100.03[01A]) - CLUTCH PEDAL - BEGIN YR 24-JUN-2014 (18) - CLUTCH

1

84584926

PEDAL

ASSY, Contains Ref. 2

1шт.

2

84394202

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 20mm W

2шт.

3

84339623

BRACKET

1шт.

4

10004911

PIN,6mm OD x 17mm L

1шт.

5

86639115

COTTER PIN,M2 x 12

1шт.

6

87016950

SNAP RING,M7, Ext

1шт.

7

84357194

FLEXIBLE CONTROL

1шт.

8

84545385

SPRING,Extension, 40mm OD, 89mm L

Used On Power Shuttle

1шт.

8

5120395

SPRING,Extension, 19.8mm OD x 103mm L

Used on Mechnical Version

1шт.

9

5115768

STOP

1шт.

10

11067371

CIRCLIP,M25

1шт.

11

84591943

ROD

1шт.

12

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

13

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.
