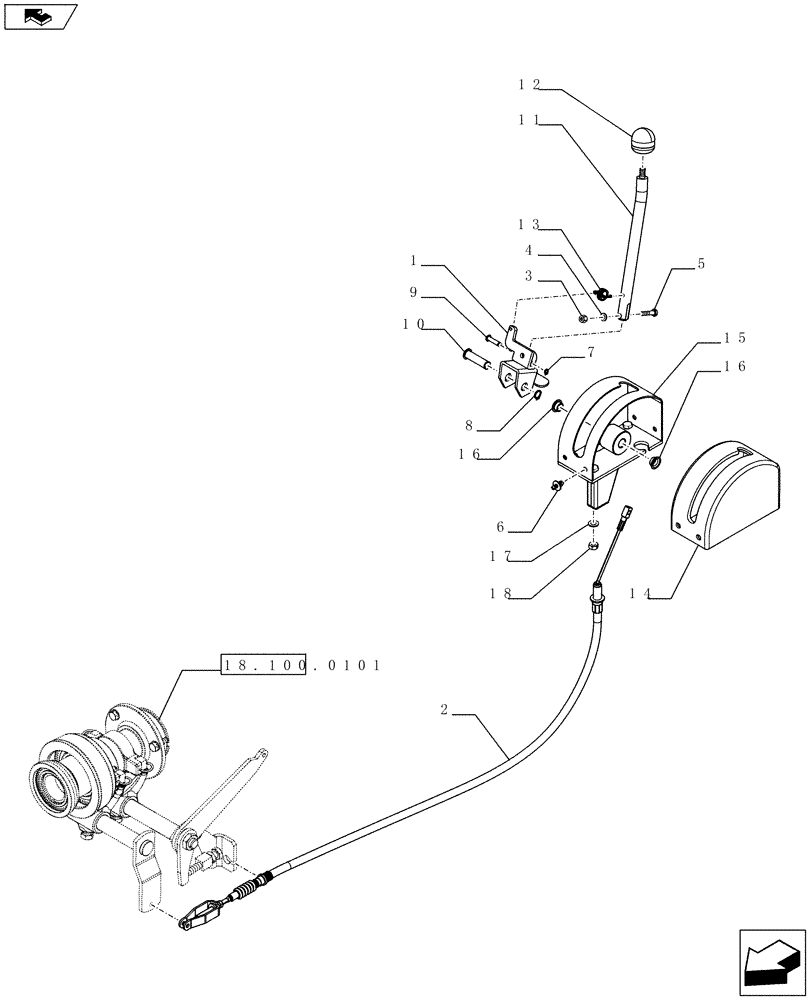

Запчасти Case IH FARMALL 75C (18.100.0202) - POWER TAKE-OFF CONTROLS - LEVER, SUPPORT AND CONTROL CABLE - L/CAB (18) - CLUTCH

1

84336174

SUPPORT

1шт.

2

84326372

FLEXIBLE CONTROL

PTO Clucth

1шт.

3

12574221

NUT,M6 x 1, Cl 10

1шт.

4

14499304

WASHER,6.4mm ID x 11mm OD x 1.6mm Thk

1шт.

5

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.

6

5098024

RIVET,6mm OD x 11mm L

4шт.

7

86507012

SNAP RING,M6, Ext

1шт.

8

11066076

SNAP RING,M12, Ext

1шт.

9

5098021

PIN,6mm OD x 24.6mm L

1шт.

10

5098020

PTO SHAFT,11.98mm OD x 46.5mm L

1шт.

11

87611329

LEVER

1шт.

12

5171717

KNOB

1шт.

13

5098823

SPRING,Extension, 18mm OD x 30mm L

1шт.

14

5098019

COVER

1шт.

15

84291917

SUPPORT

ASSY, Contains Ref. 16

1шт.

16

5171734

BUSHING,12mm ID x 20mm OD x 7mm L

2шт.

17

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

18

43362

NUT,M8 x 1.25, Cl 10

3шт.
