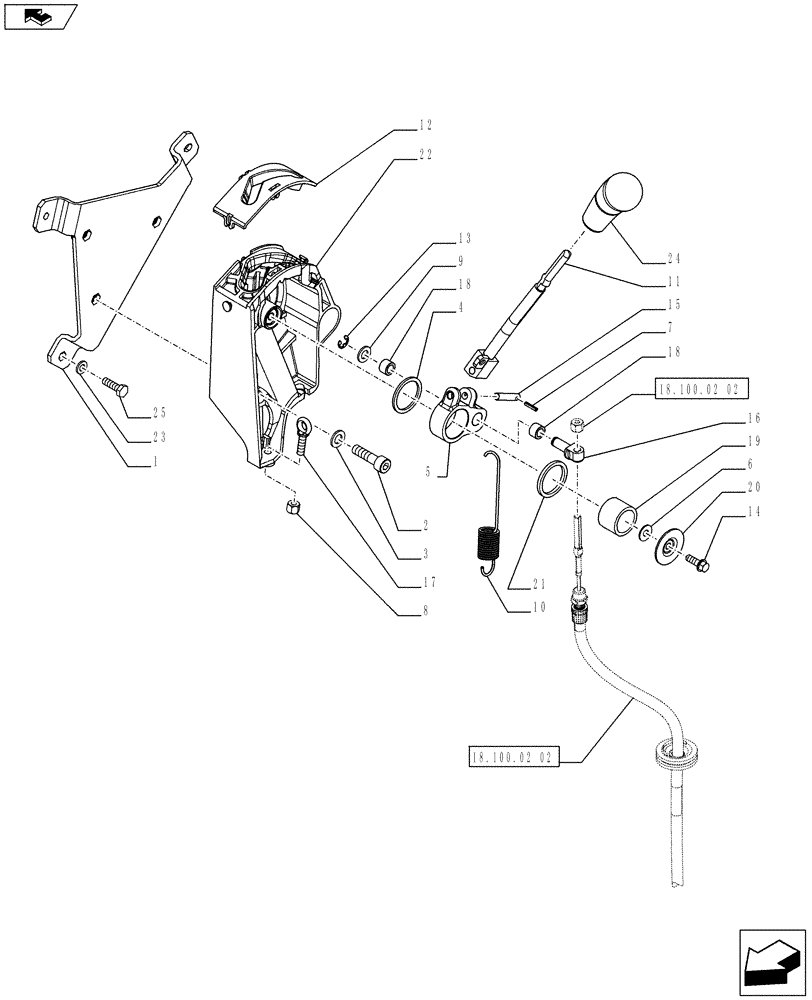

Запчасти Case IH FARMALL 75C (18.100.02[01]) - POWER TAKE-OFF CONTROLS - LEVER AND SUPPORT - W/CAB (18) - CLUTCH

1

84300283

BRACKET

1шт.

2

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

3шт.

3

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

4

5191656

CUP WASHER,28mm ID x 34mm OD x 2mm Thk

1шт.

5

5191700

BUSHING,28mm ID x 36mm OD x 16mm L

1шт.

6

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

1шт.

7

14159680

ROLL PIN

1шт.

8

12574221

NUT,M6 x 1, Cl 10

1шт.

9

12638521

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

1шт.

10

84206711

SPRING,Extension, 18mm OD x 110mm L

1шт.

11

84284607

CONTROL LEVER

1шт.

12

87325900

SECTOR

Toothed

1шт.

13

87016950

SNAP RING,M7, Ext

1шт.

14

15924904

SCREW,Hex Wshr Hd, M5.5 x 1.8 x 19mm

1шт.

15

47123110

PIN,30mm x 6mm

1шт.

16

47131077

PIN,8mm

1шт.

17

5115351

HOOK,M6 x 1

1шт.

18

47743308

NYLON BEARING,Nylon, 8mm ID x 12mm OD x 13mm W

D=8

2шт.

19

5191013

ROLLER BEARING,Needle, 22mm ID x 28mm OD x 20mm W

1шт.

20

87528262

ANTI-WRAP PLATE,6mm ID x 34mm OD

1шт.

21

87528222

WASHER,28mm ID x 34mm OD x 3mm Thk

1шт.

22

87325898

SUPPORT

1шт.

23

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

24

5194972

KNOB

1шт.

25

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.
