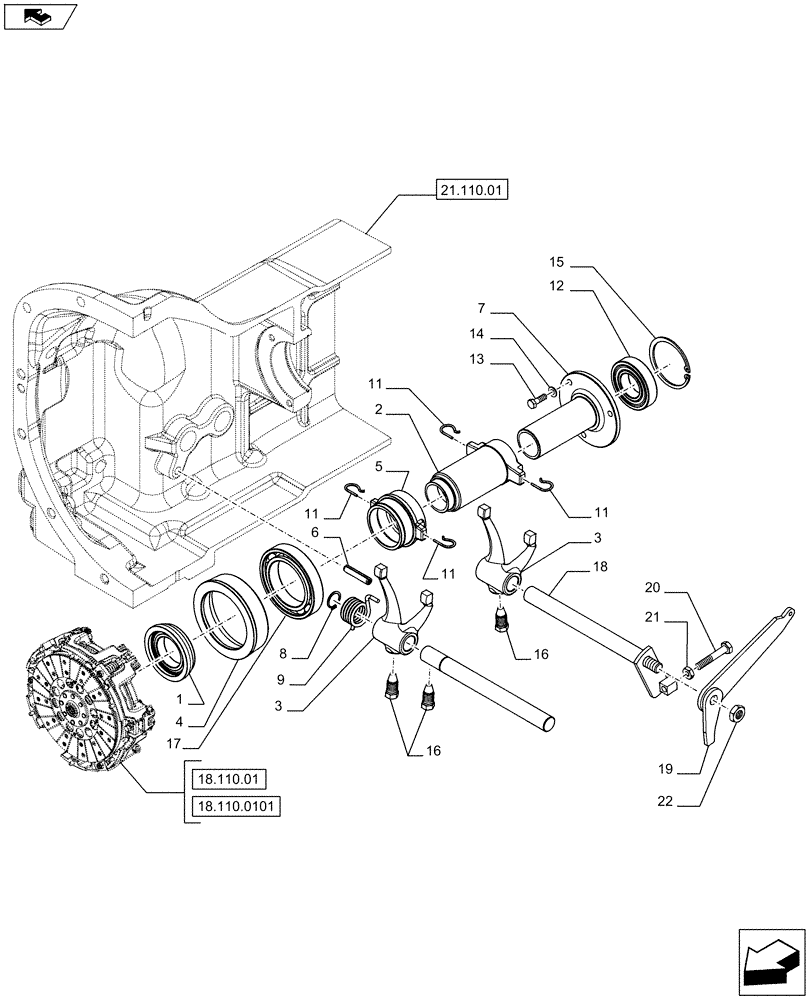

Запчасти Case IH FARMALL 75C (18.100.01) - CLUTCH LEVERS LINKS - W/CAB (18) - CLUTCH

1

87541562

THRUST BEARING,50 mm ID x 90.5 mm OD x 22 mm

1шт.

2

5171609

BEARING CARRIER,Clutch

1шт.

3

5172487

YOKE,M16 x 1.5

1шт.

4

5167182

SLEEVE,95mm ID x 128mm OD x 33mm L

1шт.

5

5191807

BEARING CARRIER,Clutch

1шт.

6

14610370

LOCK PIN,M10 x 50, Slotted

1шт.

7

87345145

SLEEVE

1шт.

8

11067276

SNAP RING,M24, Ext

1шт.

9

5189889

SPRING,38mm OD

1шт.

10

84276010

ROD

1шт.

11

44011615

SPRING,15mm, Free Length

4шт.

12

28996550

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

13

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

14

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

15

11061976

SNAP RING,M80, Int

1шт.

16

4968813

BOLT,Hex, M16 x 1.5 x 32mm

3шт.

17

47127081

BALL BEARING,75mm ID x 115mm OD x 20mm W

75 x 110 x 20

1шт.

18

84326294

LEVER

1шт.

19

84326300

LEVER

1шт.

20

15231624

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8, Full Thd

1шт.

21

10791024

THIN NUT,Thin, M10 x 1.25, Cl 05

1шт.

22

10791411

THIN NUT,Thin, M16, 1.50mm Pitch, 8.00mm High, Cl 04, ZND

2шт.
