Запчасти Case IH FARMALL 75C (1.14.6) - FUEL PIPES (02) - ENGINE EQUIPMENT

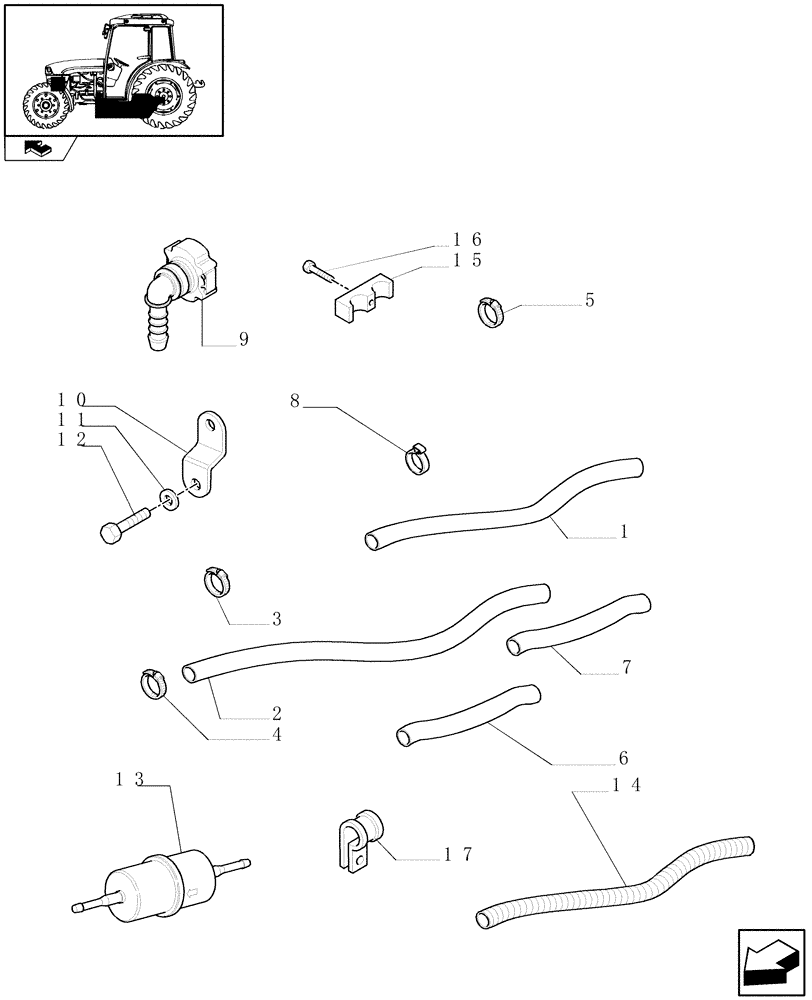

Схема запчастей Case IH FARMALL 75C - (1.14.6) - FUEL PIPES (02) - ENGINE EQUIPMENT
11
5
12
13
16
6
17
3
home
8
15
9
14
4
1
10
2
7

Артикул

Название

Примечание

Количество

1

5189616

PLASTIC-RUBBER TUBE

10x15, 1700mm

1шт.

2

82849374

HOSE,7mm ID x 1700mm L

1шт.

3

13000290

HOSE CLAMP,12mm - 18mm, Worm Gear

D=12-18

2шт.

4

10186590

CLAMP,11mm - 13mm

6шт.

5

14560387

HOSE CLIP,Black, 380mm L

1шт.

5

14560287

CABLE TIE,207.00mm L

5шт.

6

19054182

FLEXIBLE HOSE

12x18

1шт.

7

5184427

LARGE HOSE,7.00 mm ID x 2900.00 mm

1шт.

Fuel Tank Fire Tested for Japan, VAR.330136

1шт.

7

5184426

FLEXIBLE HOSE,7.50 mm ID x 2100.00 mm

1шт.

Fuel Tank Fire Tested for Japan, VAR.330136

1шт.

7

87482751

HOSE

7.5x14.5, 1200mm

1шт.

Fuel Tank Fire Tested for Japan, VAR.330136

1шт.

8

10186890

HOSE CLAMP,M14-16, Worm

2шт.

Fuel Tank Fire Tested for Japan, VAR.330136

1шт.

9

87489624

HYD CONNECTOR,Red Locking Spring

Red

2шт.

9

87489625

HYD CONNECTOR

Green

2шт.

10

5189615

BRACKET

2шт.

11

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

2шт.

12

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

13

87329736

FUEL FILTER

Inline

2шт.

14

87341201

PLASTIC-RUBBER TUBE,26 mm ID x 1050 mm L

Fuel Tube

2шт.

14

84123784

FLEXIBLE HOSE

700mm, Start Serial: D6080

1шт.

15

87325889

BRACKET

, Serial Range: D6080-C6354

2шт.

15

87571442

BRACKET

, Start Serial: D6354

1шт.

16

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

, Serial Range: D6080-C6354

2шт.

16

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

, Start Serial: D6354

1шт.

17

5145401

CLAMP

1шт.

Выбрано товаров: 28
