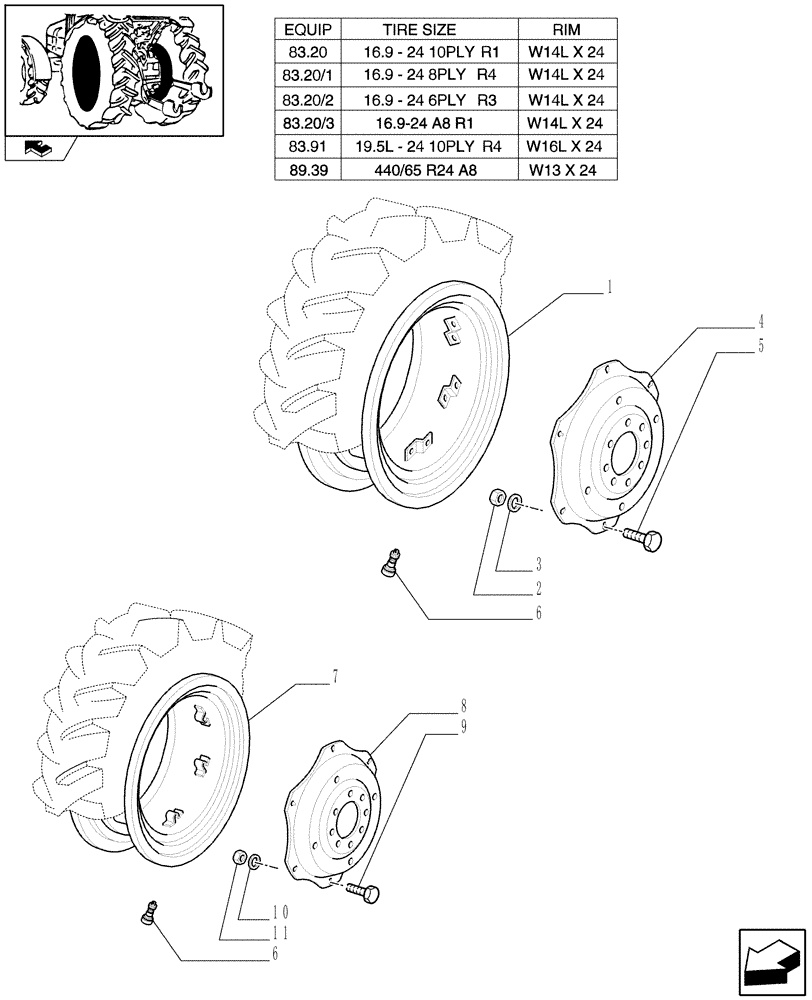

Запчасти Case IH FARMALL 75C (83.00[03]) - DRIVE WHEELS (11) - WHEELS/TRACKS

1

47130984

RIM

W16L x 24, Serial Range: -C6926

2шт.

1

47128191

RIM

W14L x 24, Serial Range: -C6926

2шт.

1

47130983

RIM

W13 x 24, Serial Range: -C6926

2шт.

2

10790421

NUT,M14 x 1.5, Cl 10

12шт.

3

11200174

BELLEVILLE WASHER,M14 Bolt Size x 32mm OD x 3.4mm Thk

14 x 32

12шт.

4

47128172

DISC

D=515, Serial Range: -C6926

2шт.

5

4959999

BOLT,M14 x 1.5 x 35mm

M14 x 1.5 x 35

12шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

84315267

RIM,W16L x 24, 6 Bolts, CASE Silver

W16L x 24, Serial Range: -D6926

2шт.

7

84315238

RIM,W14L x 24, 6 Bolts, CASE Silver

W14L x 24, Serial Range: -D6926

2шт.

7

84315191

RIM

W13 x 24, Serial Range: -D6926

2шт.

8

84313169

WHEEL DISC,515mm DIA, 8 Bolts, CASE Silver

D=515, Serial Range: -D6926

2шт.

9

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

12шт.

10

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

12шт.

11

10790521

NUT,M16 x 1.5, Cl 10

12шт.
