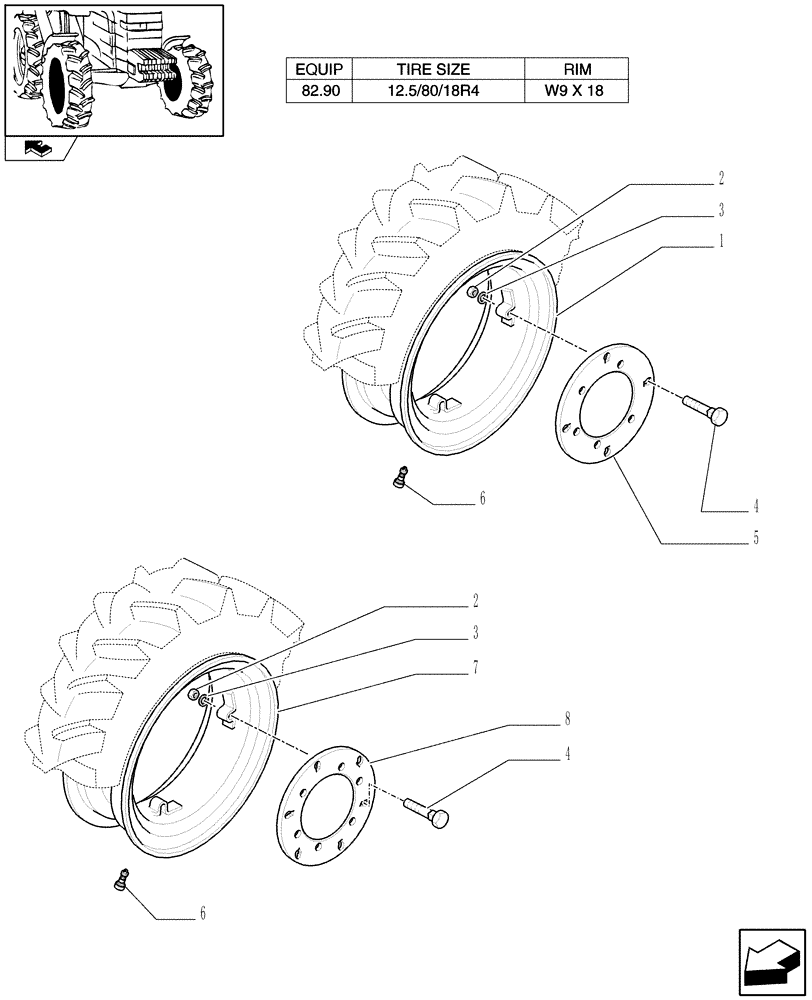

Запчасти Case IH FARMALL 75C (82.00[06]) - DRIVING WHEELS - 4WD (11) - WHEELS/TRACKS

1

47130980

RIM,462mm Dia x 228.6mm W, 4 Bolts, CASE Silver

W9x18, Serial Range: -C7049

2шт.

2

10790524

NUT,M16 x 1.5

1шт.

3

5164709

WASHER,16.6mm ID x 33mm OD x 6mm Thk

M16.6x33x6

1шт.

4

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

1шт.

5

47130964

WHEEL DISC

, Serial Range: -C7049

2шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

84425315

RIM,W9 x 18, 6 Bolts, CASE Silver

W9 x 18, Start Serial: D7049

2шт.

8

84425314

WHEEL DISC,337mm DIA, 6 Bolts, CASE Silver

, Start Serial: D7049

2шт.
