(82.00[03]) - DRIVING WHEELS - 4WD (Jan 23 2012 3:50AM)

Запчасти Case IH FARMALL 75C (82.00[03]) - DRIVING WHEELS - 4WD (Jan 23 2012 3:50AM) (11) - WHEELS/TRACKS

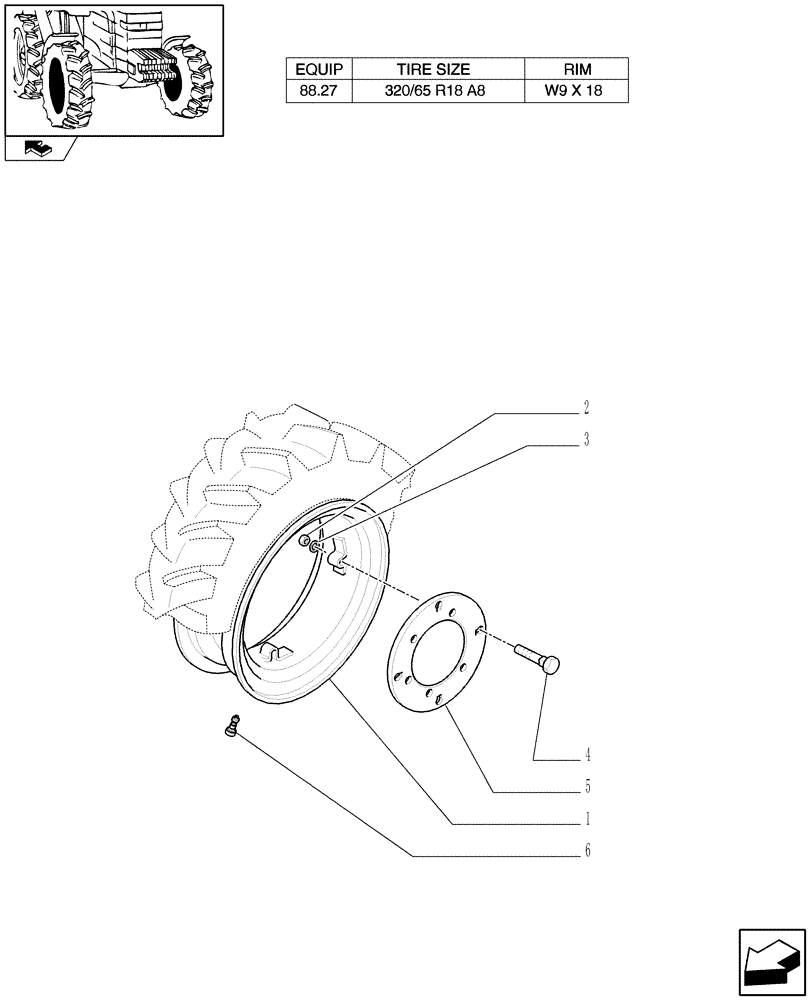

Схема запчастей Case IH FARMALL 75C - (82.00[03]) - DRIVING WHEELS - 4WD (Jan 23 2012 3:50AM) (11) - WHEELS/TRACKS
6
4
5
3
1
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47130980

RIM,462mm Dia x 228.6mm W, 4 Bolts, CASE Silver

W9x18

2шт.

2

10790524

NUT,M16 x 1.5

8шт.

3

5164709

WASHER,16.6mm ID x 33mm OD x 6mm Thk

M16.6x33x6

8шт.

4

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

8шт.

5

47130964

WHEEL DISC

2шт.

6

87323751

PNEUMATIC VALVE

2шт.

Выбрано товаров: 6
