Запчасти Case IH FARMALL 75C (1.92.74[02]) - ELECTRIC CONTROLS (10) - OPERATORS PLATFORM/CAB

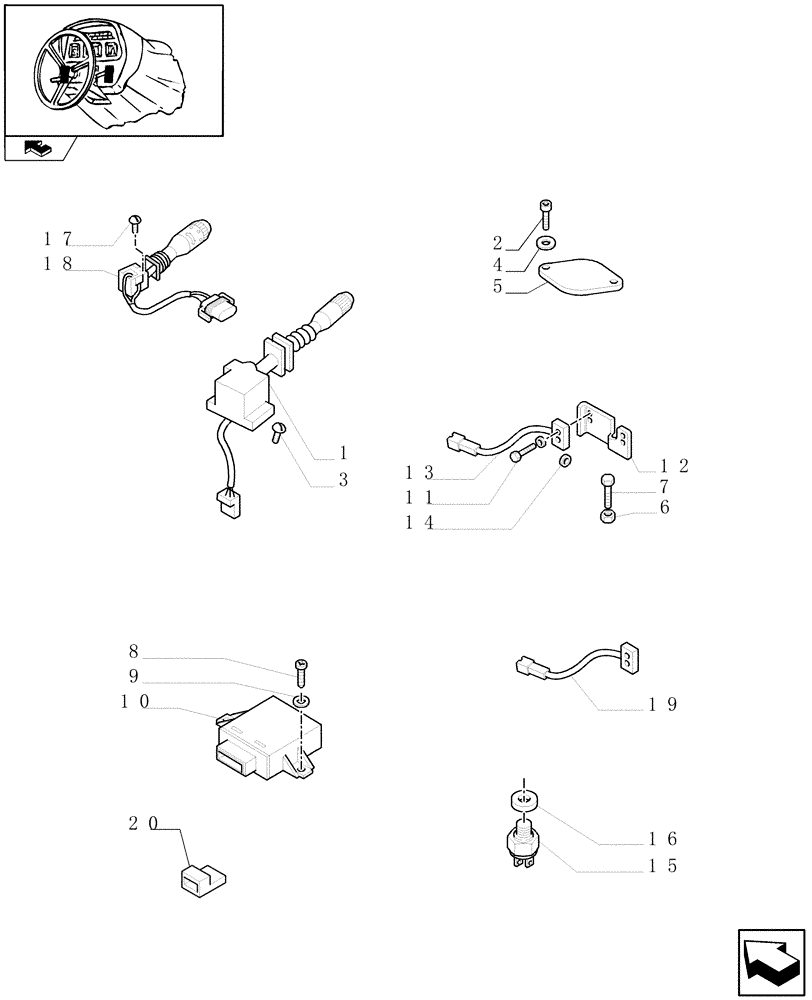

Схема запчастей Case IH FARMALL 75C - (1.92.74[02]) - ELECTRIC CONTROLS (10) - OPERATORS PLATFORM/CAB
5
20
10
home
15
3
17
6
8
4
11
19
7
13
14
16
2
9
12
18
1

Артикул

Название

Примечание

Количество

1

87648947

LIGHT SWITCH

Lights Control, L/CAB

1шт.

2

13271924

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 8.8, Full Thd

2шт.

3

15902801

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 22mm

3шт.

4

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

5

47135744

COVER

1шт.

4 Pins 40A Connectors (NA), VAR.330756

1шт.

6

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

7

14441027

SCREW,Flat Csk Hd, M5 x 30mm, Cl 8.8, Full Thd

1шт.

8

13273924

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

2шт.

9

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

10

87577636

FLASHER UNIT

Turn Indicator

1шт.

10

82038684

FLASHER UNIT

1шт.

NA Package, VAR.330007

1шт.

11

13271924

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 8.8, Full Thd

2шт.

11

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

2шт.

12

87552777

BRACKET

1шт.

13

87539616

HAND BRAKE

Hand Brake , L/CAB

1шт.

14

87566484

MAGNET

1шт.

15

87395493

PRESSURE SWITCH

Trans. Oil

1шт.

16

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

SEAL WASHER

1шт.

17

15902801

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 22mm

3шт.

18

87577943

LIGHT SWITCH

W/CAB

1шт.

19

87743859

HAND BRAKE

Hand Brake, W/CAB, L=400MM

1шт.

20

47057079

DIODE

1шт.

Part Number is valid for Std. Equip. when Lights for HPL and Front Loader Applications (VAR.330714-330715) are Chosen

1шт.

Выбрано товаров: 25
