(1.92.63/01[01]) - TILTABLE AND TELESCOPIC STEERING COLUMN FOR HYDRAULIC TRANSMISSION - STEERING WHEEL (VAR.337644)

Запчасти Case IH FARMALL 75C (1.92.63/01[01]) - TILTABLE AND TELESCOPIC STEERING COLUMN FOR HYDRAULIC TRANSMISSION - STEERING WHEEL (VAR.337644) (10) - OPERATORS PLATFORM/CAB

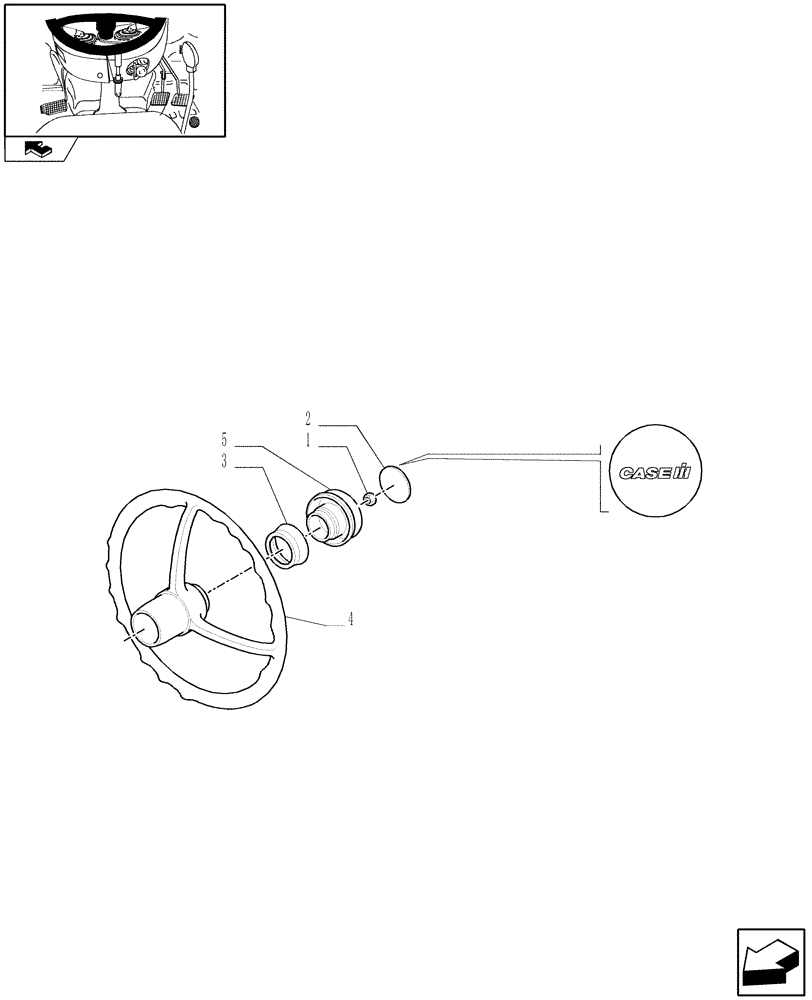

Схема запчастей Case IH FARMALL 75C - (1.92.63/01[01]) - TILTABLE AND TELESCOPIC STEERING COLUMN FOR HYDRAULIC TRANSMISSION - STEERING WHEEL (VAR.337644) (10) - OPERATORS PLATFORM/CAB
2
3
4
5
home
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

2

87698705

EMBLEM,44mm OD

1шт.

3

5175326

O-RING,36mm ID

1шт.

4

5174046

STEERING WHEEL

1шт.

5

5173996

KNOB

1шт.
