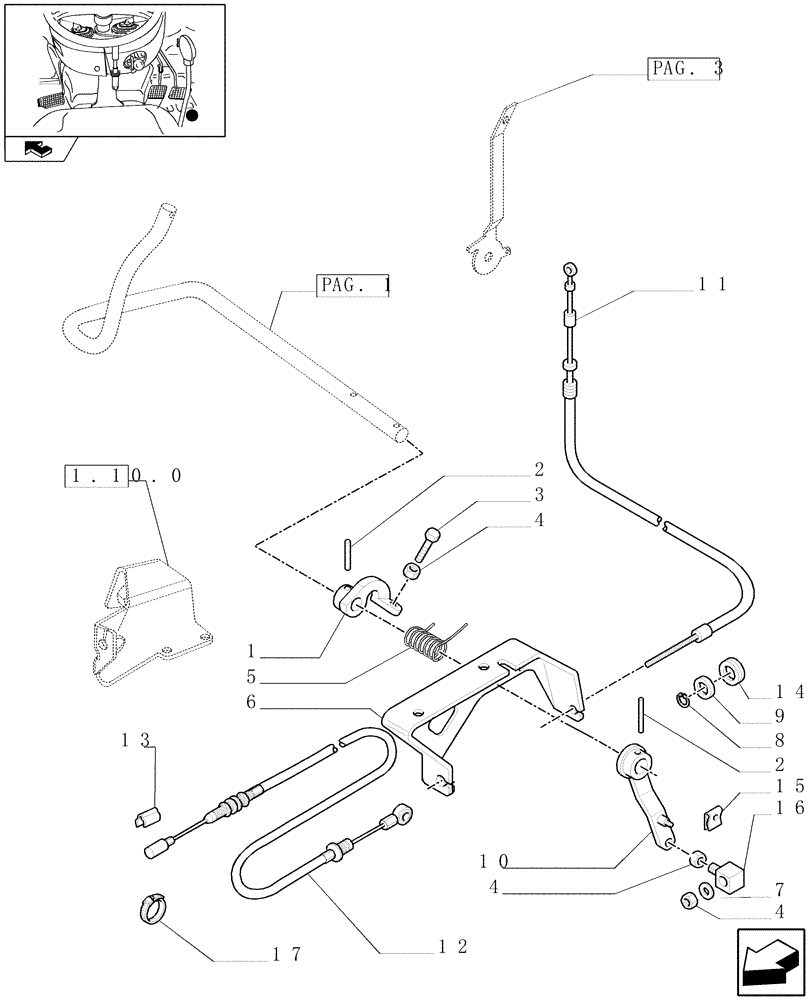

Запчасти Case IH FARMALL 75C (1.92.10[02]) - THROTTLE CONTROL LINKAGE - W/CAB (10) - OPERATORS PLATFORM/CAB

1

5176533

LEVER

1шт.

2

13938070

ROLL PIN,M4 x 24mm OAL, Coiled

2шт.

3

15213024

SCREW,Hex, M6 x 55mm, Cl 8.8

M6 x 55

1шт.

4

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

3шт.

5

5172853

SPRING

1шт.

6

47057583

SUPPORT

1шт.

7

12639721

WASHER

6 x 11

1шт.

8

11087876

CIRCLIP,M7

3шт.

9

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

1шт.

10

47057650

LEVER

1шт.

11

5192265

FLEXIBLE CONTROL

833.5MM

1шт.

12

87489604

CABLE,1578mm L

1576MM

1шт.

13

47134319

CLIP,7.8mm ID x 12.7mm L

1шт.

14

10397680

GROMMET

1шт.

15

11063876

SPRING CLIP,M5 x 4mm

D=5

1шт.

16

5171693

CLAMP

1шт.

17

14560287

CABLE TIE,207.00mm L

COLLAR

2шт.
