Запчасти Case IH FARMALL 75C (1.91.1[04]) - SWITCH AND RELATED PARTS (10) - OPERATORS PLATFORM/CAB

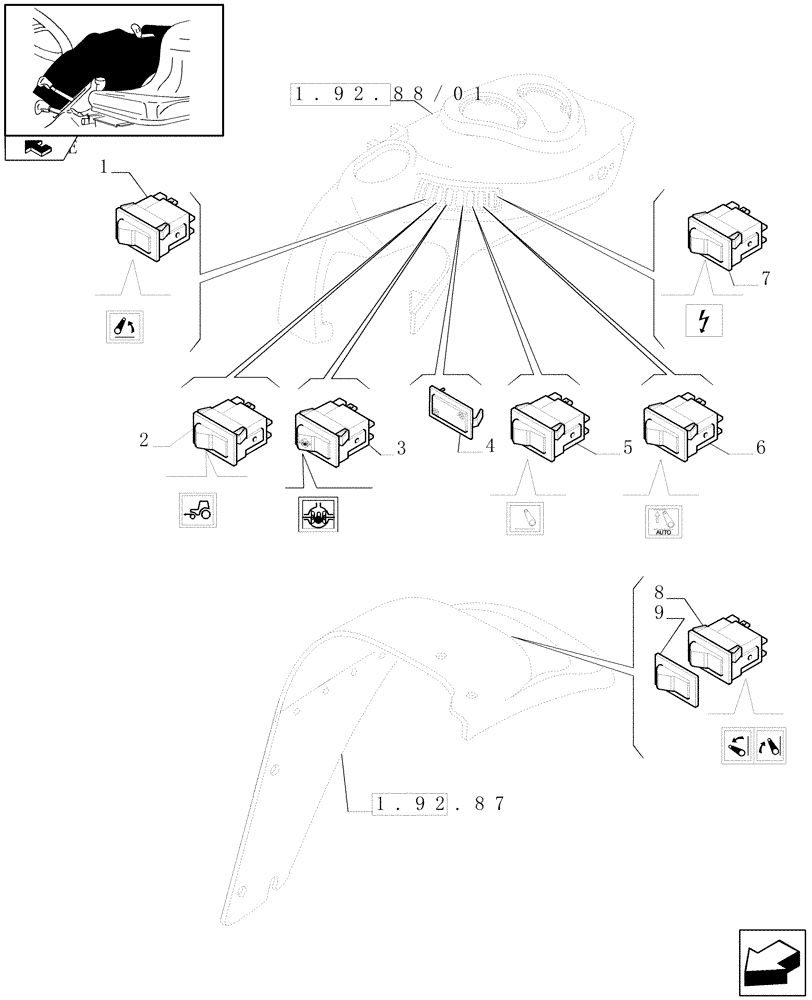

Схема запчастей Case IH FARMALL 75C - (1.91.1[04]) - SWITCH AND RELATED PARTS (10) - OPERATORS PLATFORM/CAB
4
1.92.87
1.92.88/01
5
9
3
1
8
6
home
7
2

Артикул

Название

Примечание

Количество

1

5180495

TOGGLE SWITCH

Raise/Work

1шт.

HPL with Electronic Draft Control, VAR.330127-331127-332127-333127

1шт.

Incompatible with Lever Multicontroller, VAR.338846

1шт.

2

87592037

TOGGLE SWITCH

Electro-Hydr. 4WD

1шт.

Electrohydraulic 4WD Engagement, VAR.330307-331307-333307-334307

1шт.

3

5186355

DIFF LOCK SWITCH

Diff. Lock

1шт.

Rear Hydraulic Differential Lock, VAR.331382-332382-333382-334382-335382

1шт.

4

5166218

PLUG,Switch

1шт.

5

47056414

TOGGLE SWITCH

Raise/Work, Green

1шт.

Front HPL and PTO Chassis Mounted with El. Control, VAR.330404, 331404, 332404, 333404

1шт.

6

47056284

TOGGLE SWITCH

Operation Change, green

1шт.

Front HPL and PTO Chassis Mounted with El. Control, VAR.330404, 331404, 332404, 333404

1шт.

7

47056282

TOGGLE SWITCH

Master, Green

1шт.

Front HPL and PTO Chassis Mounted with El. Control, VAR.330404, 331404, 332404, 333404

1шт.

8

5173877

TOGGLE SWITCH

Raise/Work, External

2шт.

HPL with Electronic Draft Control, VAR.330127-331127-332127-333127

1шт.

9

5169266

PROTECTION CAP

2шт.

HPL with Electronic Draft Control, VAR.330127-331127-332127-333127

1шт.

Выбрано товаров: 18
