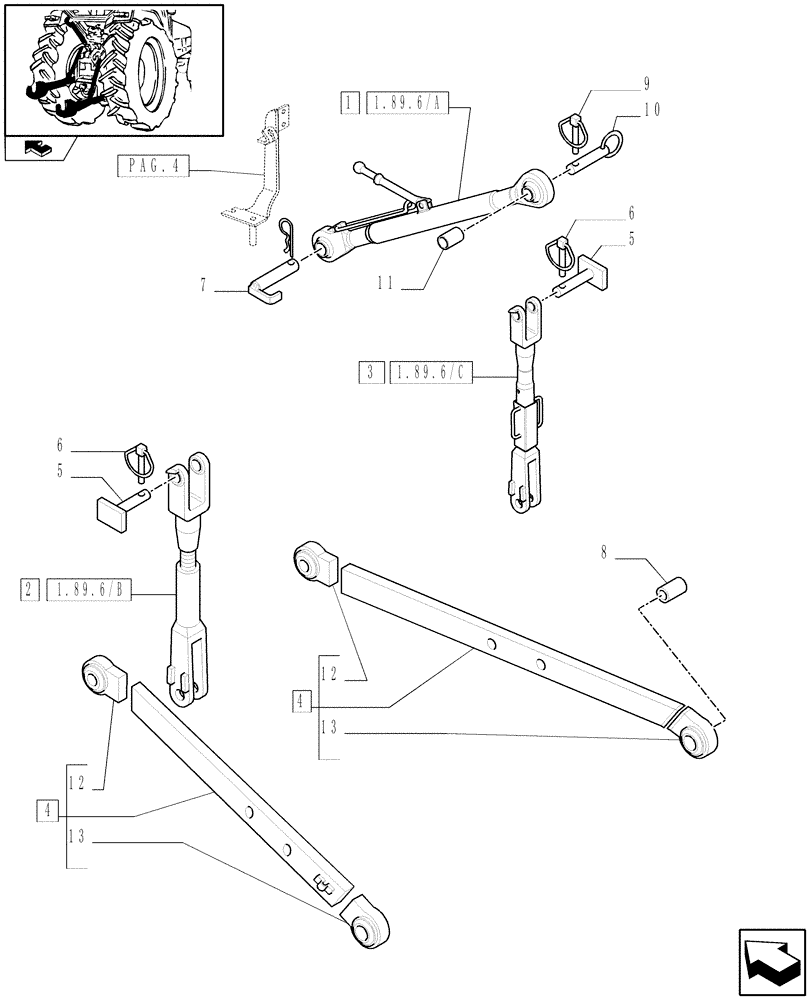

Запчасти Case IH FARMALL 75C (1.89.6[03]) - IMPLEMENT CARRIER (09) - IMPLEMENT LIFT

1

5199265

TOP LINK

ASSY

1шт.

2

47123247

TIE-ROD,M27 x 3 x 570/690mm L

ASSY, LH

1шт.

3

87543731

TIE-ROD,M27 x 2 x 570/690mm L

ASSY, RH

1шт.

4

5199349

LIFT ARM

2шт.

5

47126271

PIN,22mm OD x 84mm L

22 x 84

2шт.

6

5112606

COTTER PIN,2.5mm OD x 66.5mm L

3шт.

7

5181097

PIN,25.5mm OD x 135mm L

1шт.

8

5192619

BUSHING,22mm ID x 28.4mm OD x 35mm L

22 x 28.4 x 35

2шт.

9

5166585

LOCK PIN,11mm OD

3шт.

10

561831

PIN,19mm OD x 100mm L

Cat.1, D=19

1шт.

10

822483

PIN,25.5mm OD x 137mm L

Cat.2, D=25.5

1шт.

11

5134566

BUSHING,19.4mm ID x 25mm OD x 44mm L

1шт.

12

9971530

TRACK ROD END ASSY

2шт.

13

9971515

TRACK ROD END ASSY

2шт.
