Запчасти Case IH FARMALL 75C (1.82.8/01) - HPL WITH MECHANICAL/ELECTRONIC DRAFT CONTROL FOR APUH - CONNECTION SHAFT (VAR.331127-333127-330128) (07) - HYDRAULIC SYSTEM

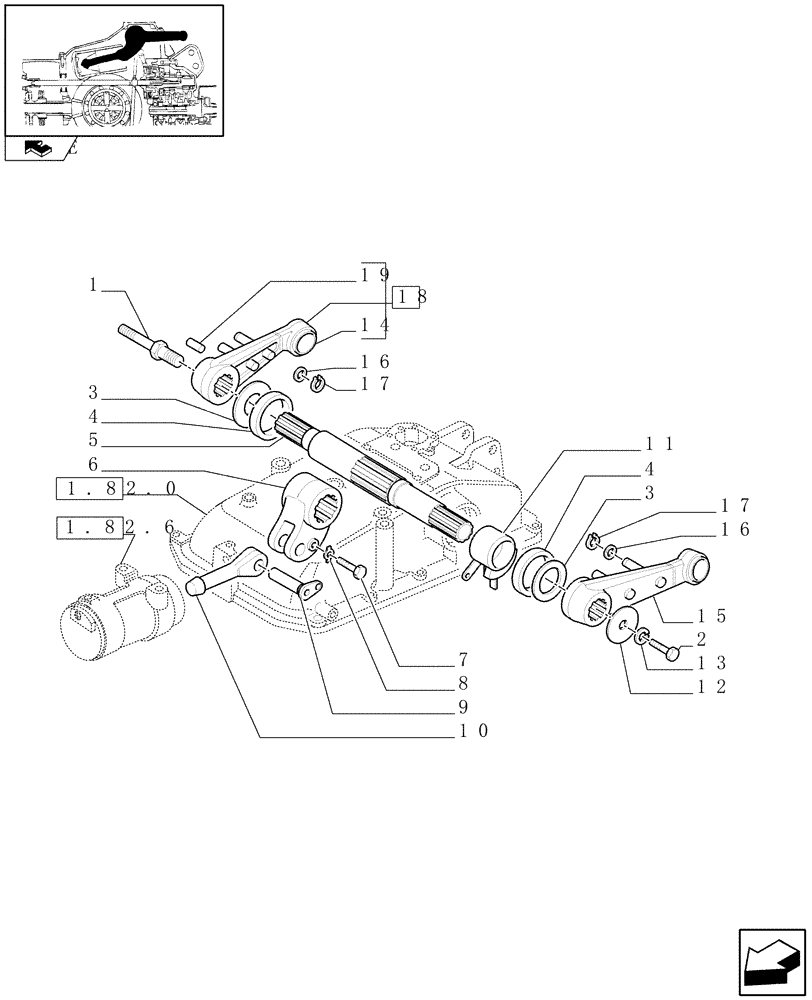

Схема запчастей Case IH FARMALL 75C - (1.82.8/01) - HPL WITH MECHANICAL/ELECTRONIC DRAFT CONTROL FOR APUH - CONNECTION SHAFT (VAR.331127-333127-330128) (07) - HYDRAULIC SYSTEM
11
17
3
home
14
10
17
5
1.82.0
13
1.82.6
6
8
16
1
9
16
4
3
12
18
15
19
2
7
4

Артикул

Название

Примечание

Количество

1

5176285

BOLT,M10 X 1.25 X 23mm - M14 X 1.25 X 30mm

1шт.

2

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

1шт.

3

5125649

SPACER,47mm ID x 85mm OD x 6mm L

2шт.

4

5125650

OIL SEAL,48mm ID x 65mm OD x 10mm Thk

48 x 65 x 10

2шт.

5

5176508

CONTROL SHAFT,50/43.5mm ID x 54.4/46.5mm OD x 428mm L, 42/60T

1шт.

6

5176633

ARM

1шт.

7

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

8

14198810

LOCKING PLATE,M10

D=10

1шт.

9

5176612

PIN,60mm L

1шт.

10

5121221

PISTON ROD,30mm OD x 174mm L

1шт.

11

5196478

RING

1шт.

HPL with Electronic Draft Control for APUH, VAR.331127-333127

1шт.

11

5176633

ARM

, Start Serial: D6081

1шт.

HPL with Mechanical Draft Control for APUH, VAR.330128

1шт.

12

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

2шт.

13

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

1шт.

14

5180289

LIFT ARM

RH, Serial Range: -C6081

1шт.

HPL with Mechanical Draft Control for APUH, VAR.330128

1шт.

14

87756882

LIFT ARM

RH, Start Serial: D6081

1шт.

HPL with Mechanical Draft Control for APUH, VAR.330128

1шт.

14

5186780

LIFT ARM

RH

1шт.

HPL with Electronic Draft Control for APUH, VAR.331127-333127

1шт.

15

5180290

LIFT ARM

LH

1шт.

16

5148062

THRUST WASHER

25.5 x 38 x 2

2шт.

17

11067374

CIRCLIP,M25

2шт.

18

84122689

ARM

1шт.

HPL with Mechanical Draft Control for APUH, VAR.330128

1шт.

19

10335010

DOWEL,M5 x 22

1шт.

HPL with Mechanical Draft Control for APUH, VAR.330128

1шт.

Выбрано товаров: 29
