Запчасти Case IH FARMALL 75C (1.82.7/ A[03]) - SIMPLE DOUBLE EFFECT DISTRIBUTOR WITH AUTOMATIC CUTOUT - BREAKDOWN (07) - HYDRAULIC SYSTEM

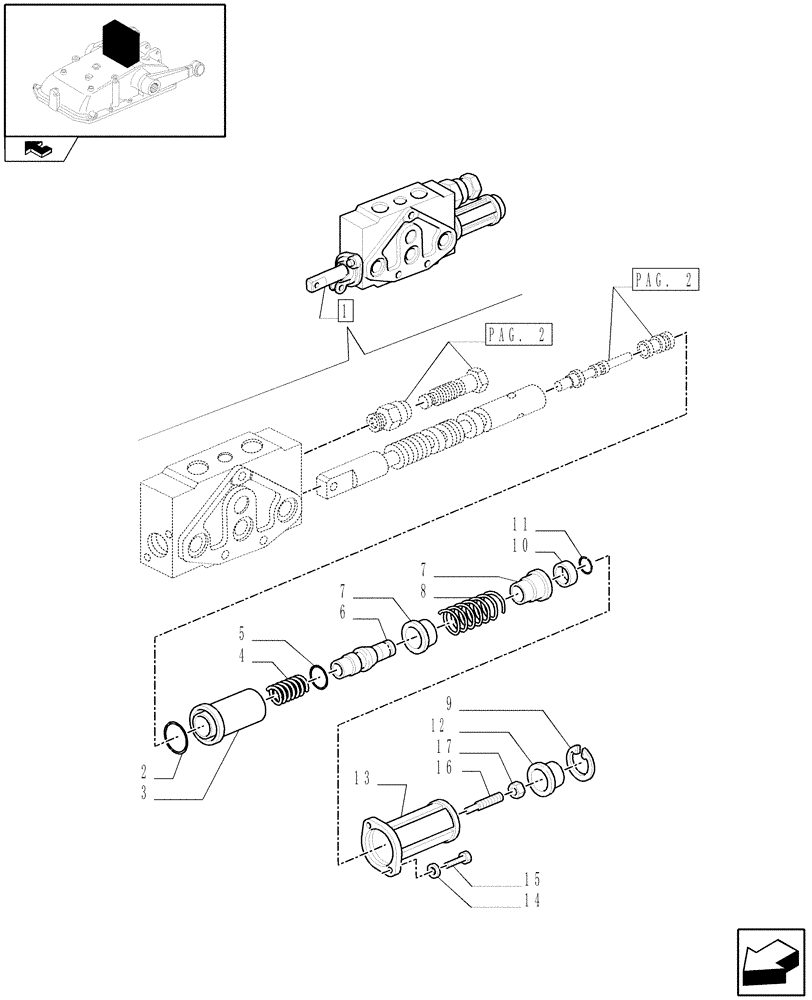

Схема запчастей Case IH FARMALL 75C - (1.82.7/ A[03]) - SIMPLE DOUBLE EFFECT DISTRIBUTOR WITH AUTOMATIC CUTOUT - BREAKDOWN (07) - HYDRAULIC SYSTEM
7
1
8
13
3
11
17
15
6
10
pag. 2
home
pag. 2
12
2
7
14
5
4
16
9

Артикул

Название

Примечание

Количество

1

87396881

CONTROL VALVE

ASSY, S/D W/Autom.Kick-Out

1шт.

2

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

3

5179137

BUSHING,16mm ID x 27mm OD x 23.5mm L

1шт.

4

5143561

SPRING,Compression, 9mm OD x 27mm L

1шт.

5

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

6

5143562

PLUG,Remote spool, M14 x 1

1шт.

7

5143564

SPRING CUP,19mm ID x 27mm OD x 10.4mm L

2шт.

8

5116893

SPRING,Compression, 27mm OD x 43mm L

1шт.

9

13421276

SNAP RING,M28, Int

1шт.

10

5143565

SPACER,16mm ID x 18.5mm OD x 3.5mm L

1шт.

11

13397776

SNAP RING,M16, Int

1шт.

12

5143567

COVER

1шт.

13

5143566

FLANGE COVER CAP,28.8mm ID x 32mm OD x 60mm L

1шт.

14

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

15

5124338

HEX SOC SCREW,6.35mm OD x 19mm L

2шт.

16

5155484

ADJUSTMENT SCREW,M5 x 0.8 x 14mm

M5 x 0.8

1шт.

17

15896421

NUT,M5, Cl 10

1шт.

Выбрано товаров: 17
