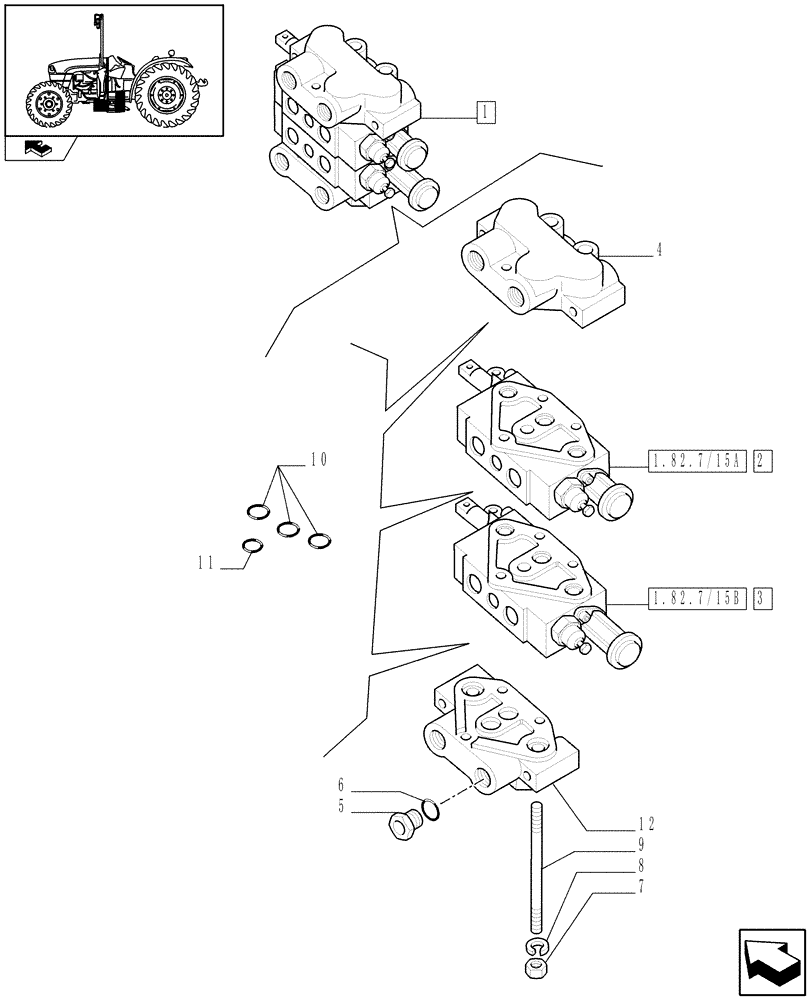

Запчасти Case IH FARMALL 75C (1.82.7/15[01]) - 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK - REMOTE VALVES (VAR.330124-331124-332124-330125-331125-332125-331125-332125-334125-335125-334125-335125) (07) - HYDRAULIC SYSTEM

1

47128730

CONTROL VALVE

ASSY

1шт.

2

87396848

CONTROL VALVE

ASSY.

1шт.

S/D Mid-Mount Remote

1шт.

3

87396859

CONTROL VALVE

ASSY.

1шт.

S/D w/Float Mid-Mount Remote

1шт.

4

87358977

COVER

Has counterbore on three large holes

1шт.

5

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

7

5116857

NUT,3/8" - 24

6шт.

8

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

D=10

3шт.

9

5151506

THREADED ROD,3/8" - 24 x 6-5/8"

3шт.

10

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

9шт.

11

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING

3шт.

12

5149118

COVER

1шт.
