Запчасти Case IH FARMALL 75C (1.82.7/08[01]) - 2 REAR REMOTE VALVES FOR MID-MOUNT AND EDC - CAPS AND FLANGE (VAR.333108) (07) - HYDRAULIC SYSTEM

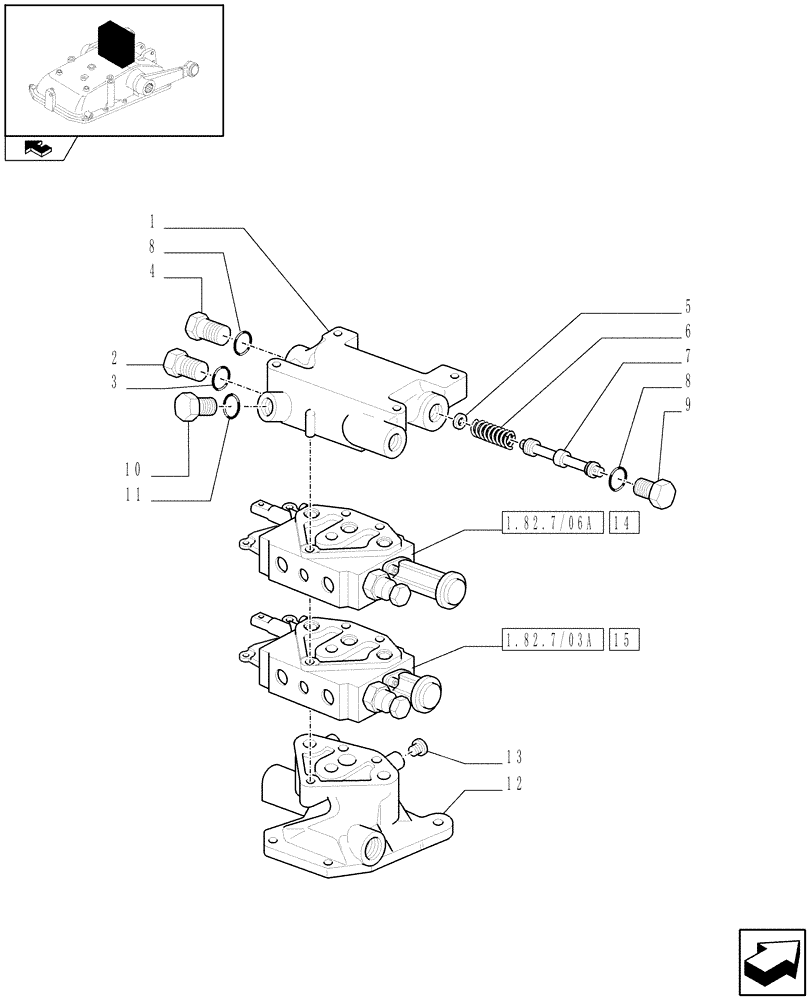

Схема запчастей Case IH FARMALL 75C - (1.82.7/08[01]) - 2 REAR REMOTE VALVES FOR MID-MOUNT AND EDC - CAPS AND FLANGE (VAR.333108) (07) - HYDRAULIC SYSTEM
15
6
2
9
11
1.82.7/06a
home
1.82.7/03a
4
14
7
5
3
8
10
12
1
8
13

Артикул

Название

Примечание

Количество

1

87374218

FLANGE

ASSY

1шт.

2

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12 x 18 x 1.5

1шт.

4

5173857

PLUG,Hex, M27 x 2

1шт.

5

5167122

VALVE

1шт.

6

83948862

SPRING,12.3mm OD x 76.2mm L

1шт.

7

83999793

HYDRAULIC VALVE

1шт.

8

14438185

O-RING,24mm ID x 3mm

2шт.

9

5167123

PLUG,7/16" - 20

1шт.

10

83957506

PLUG,3/4"

1шт.

11

81826567

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

5176480

FLANGE

1шт.

13

10269601

PLUG,M16 x 1.5

M16 x 1.5

1шт.

14

87374242

CONTROL VALVE

1шт.

S/D w/Kickout & Float for Mid-Mount Remotes Only

1шт.

15

87396837

CONTROL VALVE

1шт.

S/D w/Kickout for Mid-Mount Remotes Only

1шт.

Выбрано товаров: 17
