Запчасти Case IH FARMALL 75C (1.82.7/06[01]) - 2 REAR REMOTE VALVES FOR MID-MOUNT AND MDC - REMOTE VALVES (VAR.332108) (07) - HYDRAULIC SYSTEM

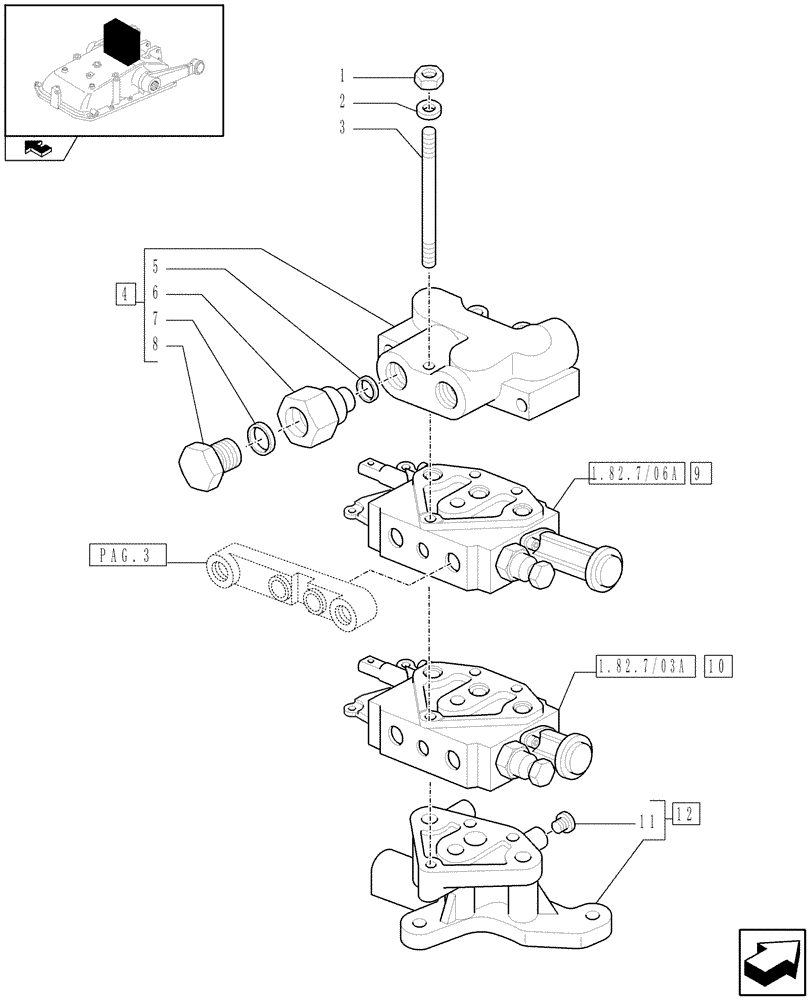

Схема запчастей Case IH FARMALL 75C - (1.82.7/06[01]) - 2 REAR REMOTE VALVES FOR MID-MOUNT AND MDC - REMOTE VALVES (VAR.332108) (07) - HYDRAULIC SYSTEM
7
10
1
2
11
8
3
5
12
1.82.7/03a
home
1.82.7/06a
pag.3
9
4
6

Артикул

Название

Примечание

Количество

1

5116857

NUT,3/8" - 24

3/8"

6шт.

2

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

D=10

3шт.

3

5151506

THREADED ROD,3/8" - 24 x 6-5/8"

3шт.

4

87397264

SUPPORT

ASSY

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

6

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

7

81826567

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

83957506

PLUG,3/4"

1шт.

9

87374242

CONTROL VALVE

ASSY.

1шт.

S/D w/Kickout & Float for Mid-Mount Remotes Only

1шт.

10

87396837

CONTROL VALVE

ASSY.

1шт.

S/D w/Kickout for Mid-Mount Remotes Only

1шт.

11

10269601

PLUG,M16 x 1.5

M16 x 1.5

1шт.

12

5176800

FLANGE

1шт.

Выбрано товаров: 14
