Запчасти Case IH FARMALL 75C (1.82.1[02]) - LIFTER, LINES (07) - HYDRAULIC SYSTEM

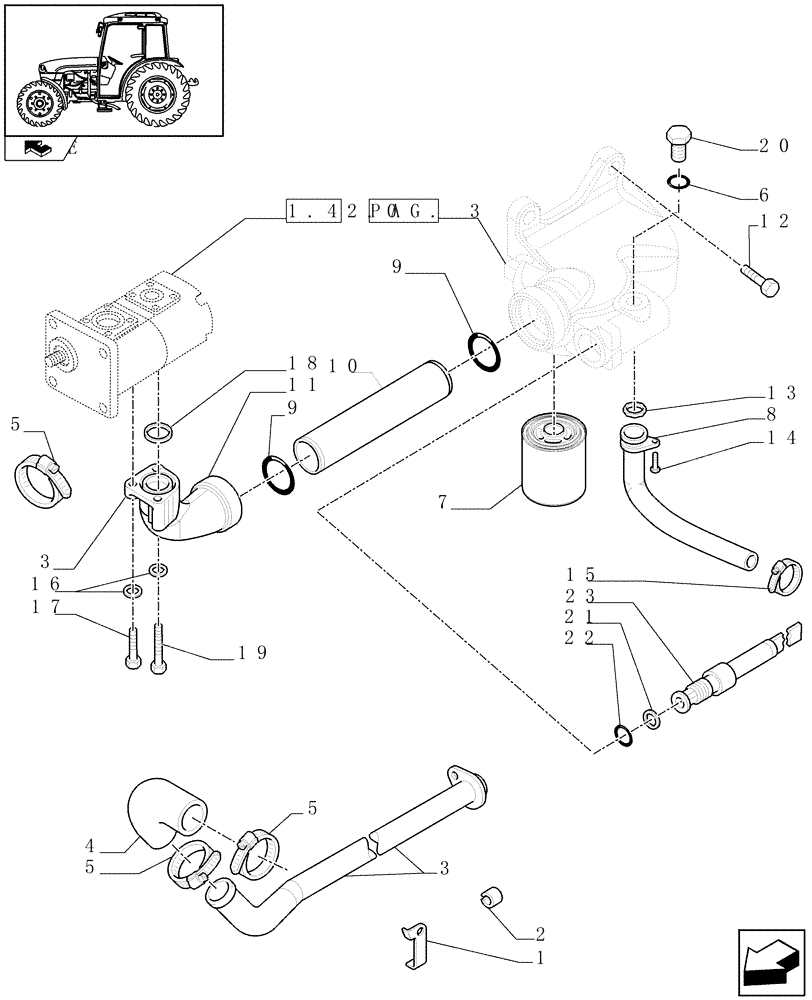

Схема запчастей Case IH FARMALL 75C - (1.82.1[02]) - LIFTER, LINES (07) - HYDRAULIC SYSTEM
14
5
8
5
1.42.0
pag. 3
9
18
12
9
21
10
11
4
17
2
home
16
5
19
6
1
13
3
15
3
23
22
7
20

Артикул

Название

Примечание

Количество

1

5180008

BRACKET

1шт.

2

4959735

SPACER,18mm ID x 25mm OD x 30mm L

1шт.

3

5181132

RIGID TUBE

1шт.

3

5180566

RIGID TUBE

1шт.

With Hydraulic Power Lift, VAR.330127-331127-332127-333127-330128

1шт.

4

5188195

ELBOW,45mm ID x 145mm L

1шт.

5

13000990

COLLAR,60mm - 80mm, Worm Gear

1шт.

5

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

6

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

7

84257511

HYDRAULIC OIL FILTER,138.00mm OD

1шт.

8

87392919

RIGID TUBE,45 mm DIA x 341.9, 149.8 mm L

1шт.

9

14464281

O-RING,1.734" ID x 0.139" Width

2шт.

10

5180628

RIGID TUBE

1шт.

10

87392916

RIGID TUBE,45 mm OD x 139.5 mm L

1шт.

11

87552552

HYD CONNECTOR

1шт.

12

11112624

BOLT,M12 x 35, 8.8, Full Thd

2шт.

13

5174527

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

14

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

15

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

2шт.

16

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

17

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

18

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

19

14306921

HEX SOC SCREW,M8 x 50mm, Cl 8.8

2шт.

20

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

21

10263360

SEAL,20.3mm ID x 26mm OD x 1mm Thk

1шт.

22

14453981

O-RING,0.989" ID x 0.07" Width

1шт.

23

47128782

VALVE PRESSURE RELIE

Incl. 22

1шт.

Выбрано товаров: 27
