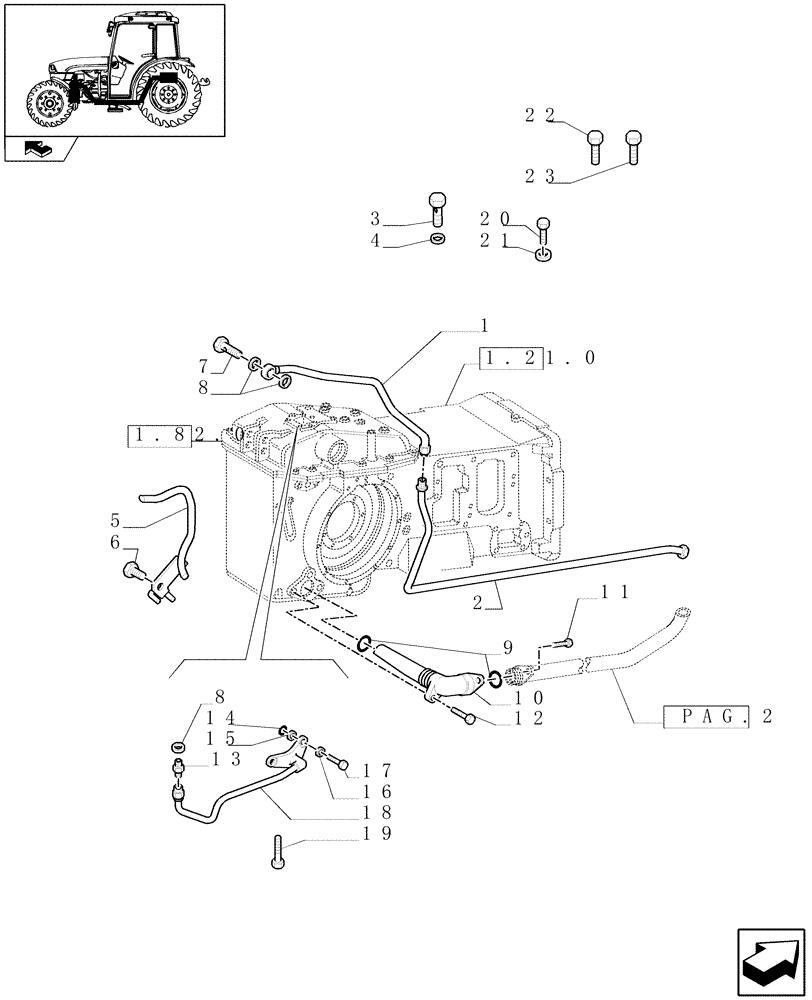

Запчасти Case IH FARMALL 75C (1.82.1[01]) - LIFTER, LINES (07) - HYDRAULIC SYSTEM

1

5174620

RIGID TUBE

Rear

1шт.

2

87309266

RIGID TUBE

1шт.

3

5182095

BANJO BOLT,M22 x 1.5 x 47mm

M22

1шт.

4

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

23.5 x 30 x 1.5

2шт.

5

5183493

RIGID TUBE

1шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

7

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18 x 1.5

1шт.

8

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

3шт.

9

5174527

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

2шт.

10

5177027

RIGID TUBE

1шт.

11

16043420

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

12

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

1шт.

13

5158806

HYD CONNECTOR,7/8-14 UNF, M18 x 1.5

M18

1шт.

14

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

15

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

1шт.

16

10571770

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

D=8

2шт.

17

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

18

47130049

RIGID TUBE

1шт.

19

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

20

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

2шт.

21

10516474

LOCK WASHER

2шт.

22

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

23

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

1шт.
