(1.81.9/02[02]) - FRONT HPL AND PTO AXLE MOUNTED WITH ELECTRONIC CONTROL - CYLINDERS AND PINS (VAR.330848-331848-332848-333848)

Запчасти Case IH FARMALL 75C (1.81.9/02[02]) - FRONT HPL AND PTO AXLE MOUNTED WITH ELECTRONIC CONTROL - CYLINDERS AND PINS (VAR.330848-331848-332848-333848) (07) - HYDRAULIC SYSTEM

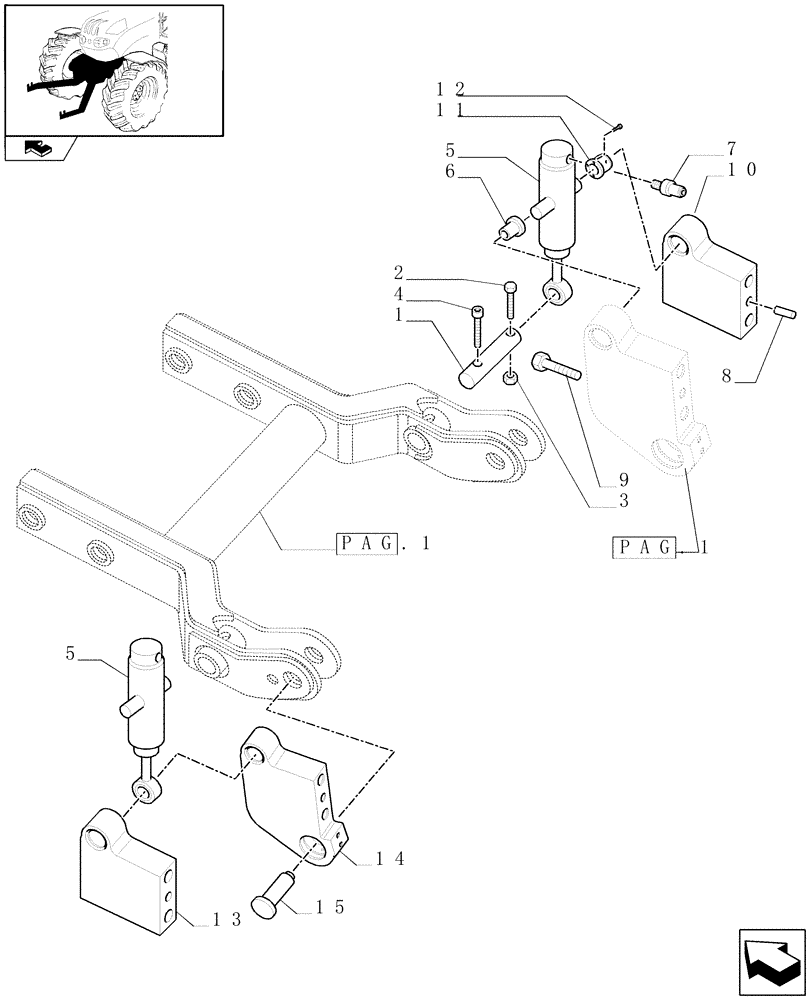

Схема запчастей Case IH FARMALL 75C - (1.81.9/02[02]) - FRONT HPL AND PTO AXLE MOUNTED WITH ELECTRONIC CONTROL - CYLINDERS AND PINS (VAR.330848-331848-332848-333848) (07) - HYDRAULIC SYSTEM
5
2
8
1
15
home
pag.1
pag.1
13
11
5
6
3
10
9
4
14
12
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47057460

PIN,35mm OD x 202mm L

2шт.

2

11107221

BOLT,Hex, M10 x 50mm, Cl 8.8

2шт.

3

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

4

14420821

2шт.

5

87301863

LIFT CYLINDER,Double Acting, 30mm Rod, 120mm Stroke

2шт.

84150662

SEAL KIT

1шт.

6

47056162

BUSHING,30mm ID x 42mm OD x 26.0mm L

4шт.

7

47056732

BANJO BOLT

2шт.

8

5174376

DOWEL,M16 x 30

4шт.

9

16440421

BOLT,Hex, M20 x 2.5 x 200mm, Cl 8.8

, Serial Range: -C6321

8шт.

9

11125921

BOLT,Hex, M20 x 110, 8.8

, Start Serial: D6321

8шт.

10

87596338

SUPPORT

, Serial Range: -C6321

1шт.

10

87303014

PLATE

, Start Serial: D6321

1шт.

11

47057183

COVER

1шт.

12

14305121

HEX SOC SCREW,M6 x 12mm, Cl 8.8

3шт.

13

87596337

SUPPORT

, Serial Range: -C6321

1шт.

13

87303015

PLATE

, Start Serial: D6321

1шт.

14

87303476

PLATE

1шт.

15

47056156

PIN

2шт.
