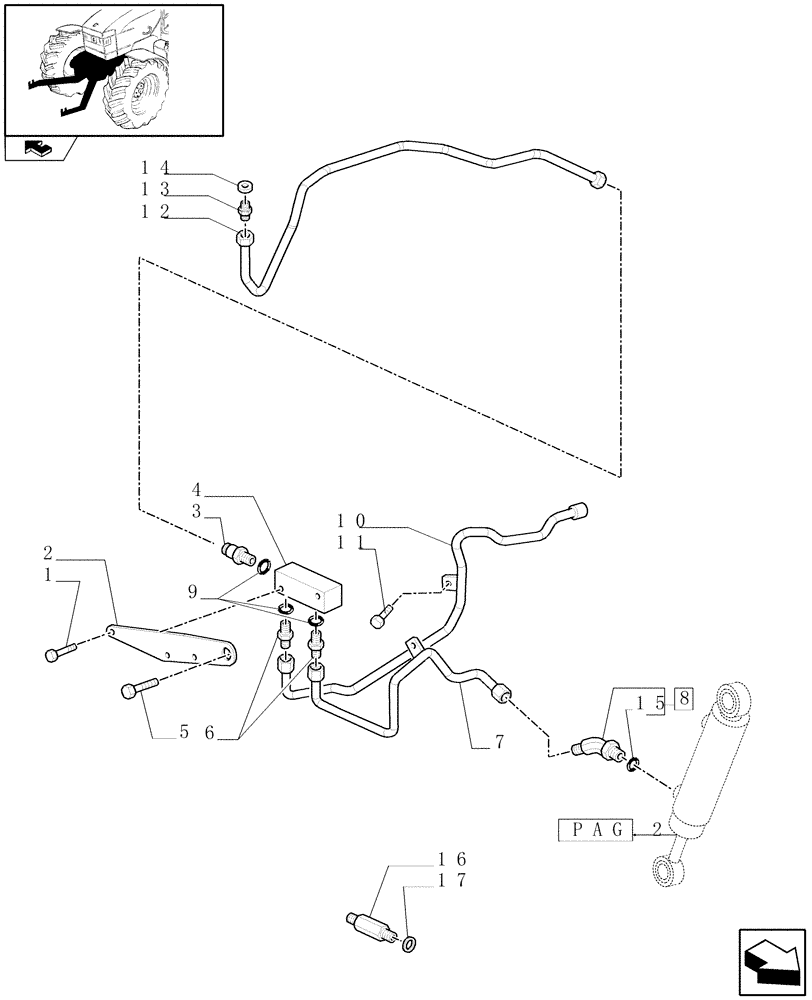

Запчасти Case IH FARMALL 75C (1.81.9[04]) - FRONT HPL AND PTO WITH MECHANICAL CONTROL - PIPES (VAR.330789) (07) - HYDRAULIC SYSTEM

1

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

2

87745307

BRACKET

1шт.

3

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

M22 x 1.5

1шт.

4

47057148

BLOCK

1шт.

5

11121321

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

M20 x 2.5 x 35

1шт.

6

5158803

HYD CONNECTOR,M22 x 1.5 ORB x 7/8" - 14 JIC

M22 x 1.5

2шт.

7

87745314

RIGID TUBE,1048 mm L

RH

1шт.

8

82005507

HYD CONNECTOR

7/8"-14, M18 x 1.5

2шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

10

87745316

RIGID TUBE,1155 mm L

LH

1шт.

11

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

12

87745319

RIGID TUBE,657.5 mm L

1шт.

13

5155665

HYD CONNECTOR

M18 x 1.5

1шт.

14

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

1шт.

15

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

16

5171534

HYD CONNECTOR,7/8" - 14 JIC x M18 x 1.5 ORB

1шт.

17

14437985

O-RING,15.3mm ID x 2.4mm

1шт.
