(1.81.9[01]) - FRONT HPL AND PTO WITH MECHANICAL CONTROL - SUPPORT (VAR.330789)

Запчасти Case IH FARMALL 75C (1.81.9[01]) - FRONT HPL AND PTO WITH MECHANICAL CONTROL - SUPPORT (VAR.330789) (07) - HYDRAULIC SYSTEM

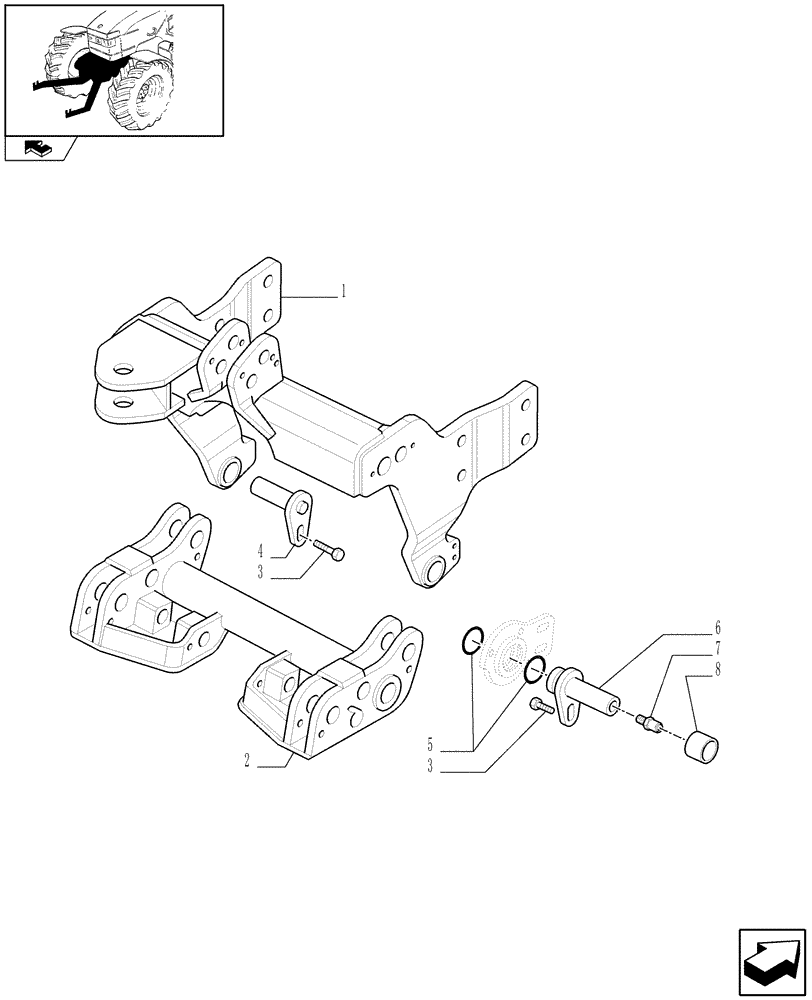

Схема запчастей Case IH FARMALL 75C - (1.81.9[01]) - FRONT HPL AND PTO WITH MECHANICAL CONTROL - SUPPORT (VAR.330789) (07) - HYDRAULIC SYSTEM
1
2
5
6
3
home
7
8
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87596344

SUPPORT

1шт.

2

47057041

YOKE

1шт.

3

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

4

47057046

BOLT

2шт.

5

14458780

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

2шт.

6

47057185

PIN

1шт.

7

13407211

LUBE NIPPLE,M10 x 1

2шт.

8

47057044

BUSHING

2шт.
