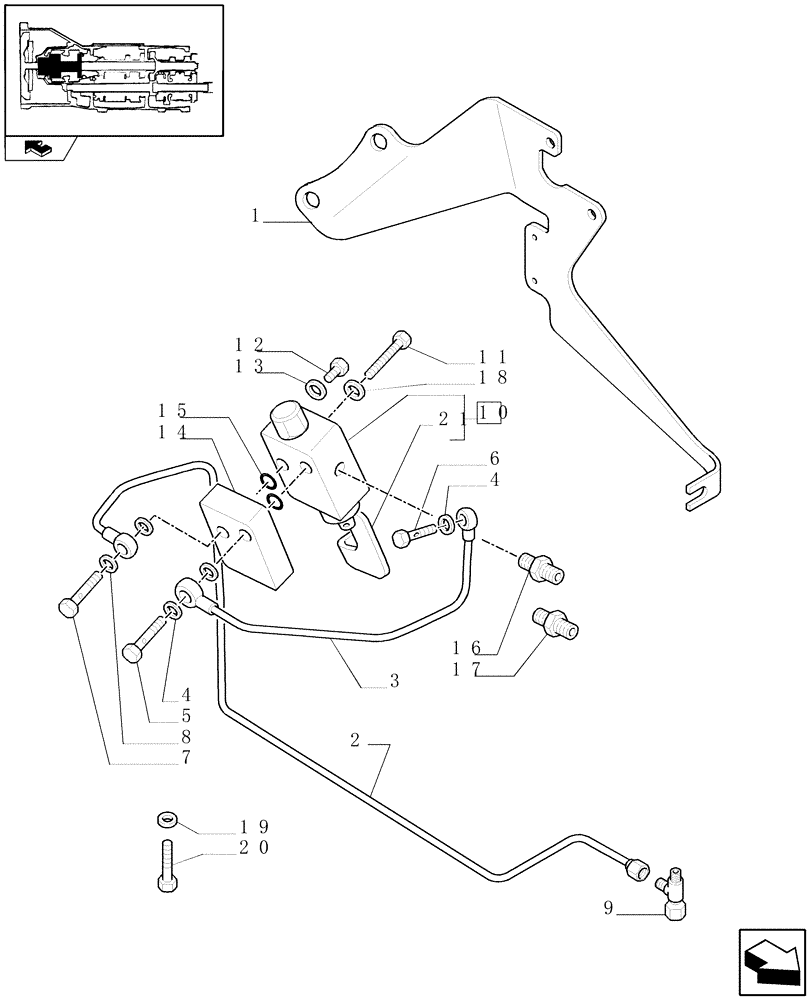

Запчасти Case IH FARMALL 75C (1.80.5[04]) - FRONT HPL AND PTO CHASSIS MOUNTED - VALVE AND PIPES (VAR.330404-331404-332404-333404-330789) (07) - HYDRAULIC SYSTEM

1

87309698

BRACKET

1шт.

2

47057190

RIGID TUBE

1шт.

3

47056862

RIGID TUBE

1шт.

4

10280060

SEAL,M14.2 x 20 x 1.5

5шт.

5

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14 x 1.5

1шт.

6

47056965

SCREW

M14 x 1.5

1шт.

7

10185011

BANJO BOLT,M12 x 1.25 x 23mm

1шт.

8

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

2шт.

9

47056968

HYD CONNECTOR

1/2"-20

1шт.

10

47057499

HYDRAULIC VALVE

1шт.

11

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

12

11903011

PLUG,M10 x 1 x 11, Cl5.8

2шт.

13

11270060

SEALING WASHER,M10.2 x 13.4 x 1, Copper

2шт.

14

47056876

HYD CONNECTOR

1шт.

15

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

16

47056673

HYD CONNECTOR

M14 x 1.5, 9/16"-18

1шт.

17

47056677

HYD CONNECTOR

M16 x 1.5, 9/16"-18

1шт.

18

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

19

87315806

SPACER

2шт.

20

15978321

SCREW,Hex, M14 x 1.5 x 140mm

2шт.

21

87560099

LEVER

1шт.
