(1.80.3) - FRONT AXLE WITH EL.HYDR. DIFF. LOCK (40 KM/H) FOR FRONT HPL - CABLE (VAR.332323-332329)

Запчасти Case IH FARMALL 75C (1.80.3) - FRONT AXLE WITH EL.HYDR. DIFF. LOCK (40 KM/H) FOR FRONT HPL - CABLE (VAR.332323-332329) (07) - HYDRAULIC SYSTEM

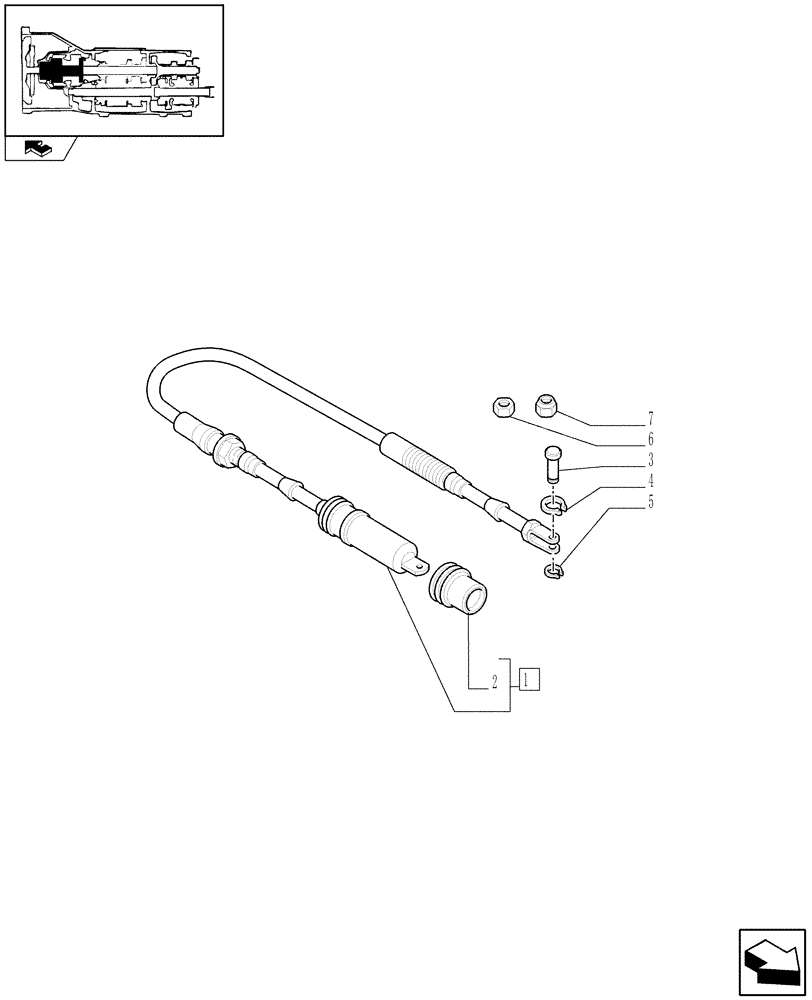

Схема запчастей Case IH FARMALL 75C - (1.80.3) - FRONT AXLE WITH EL.HYDR. DIFF. LOCK (40 KM/H) FOR FRONT HPL - CABLE (VAR.332323-332329) (07) - HYDRAULIC SYSTEM
1
7
6
3
4
5
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47133733

CABLE,1325mm L

ASSY

1шт.

2

47133727

BELLOWS

1шт.

3

47133735

PIN

1шт.

4

13579121

WASHER,5.15mm ID x 10mm OD x 0.5mm Thk

5 x 10 x 0.5

1шт.

5

11087676

CIRCLIP,M5

1шт.

6

47127764

NUT

M16

1шт.

7

47127765

NUT

M16

1шт.
