Запчасти Case IH FARMALL 75C (1.75.4/01) - AUXILIARY CABLES LESS BATTERY ISOLATOR SWICTH (VAR.333006) (06) - ELECTRICAL SYSTEMS

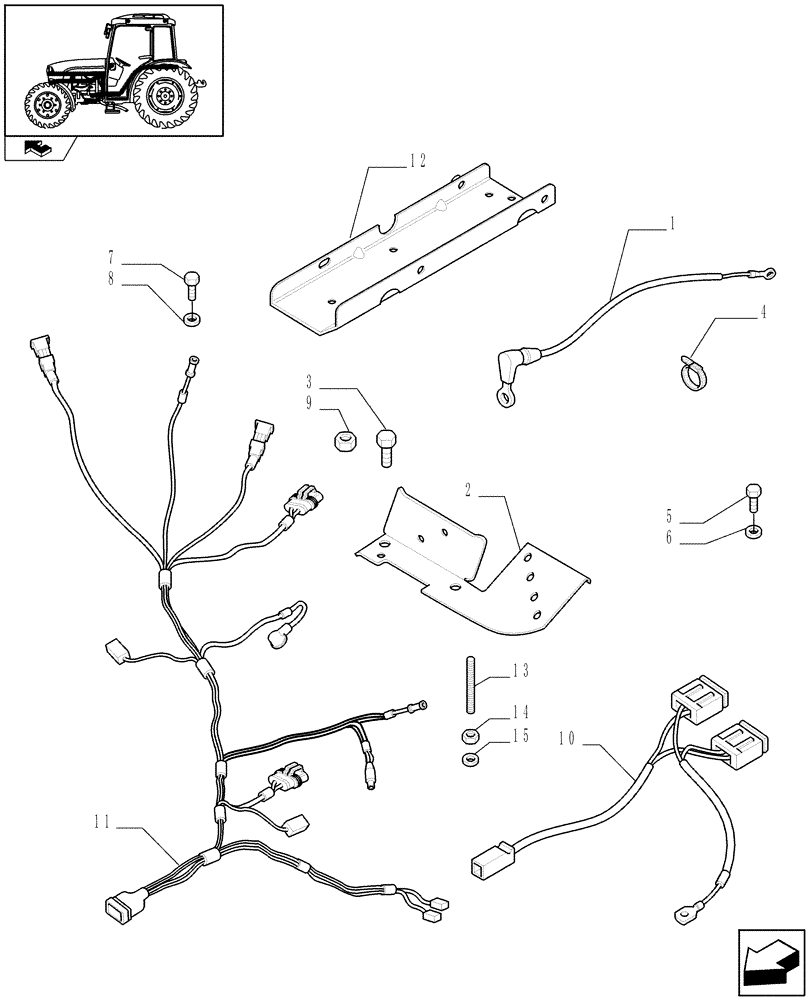

Схема запчастей Case IH FARMALL 75C - (1.75.4/01) - AUXILIARY CABLES LESS BATTERY ISOLATOR SWICTH (VAR.333006) (06) - ELECTRICAL SYSTEMS
12
6
15
10
14
1
3
7
2
9
4
11
5
home
13
8

Артикул

Название

Примечание

Количество

1

87370901

CABLE

1шт.

Harness From Starter Motor to Alternator

1шт.

2

87677157

BRACKET

1шт.

3

14440624

SET SCREW,Hex Soc, M5 x 12mm, Flat Pt

2шт.

4

14560287

CABLE TIE,207.00mm L

COLLAR

5шт.

5

16042921

BOLT,Hex, M8 x 10mm, Cl 8.8, Full Thd

1шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

7

10979421

SCREW,Hex, M6 x 10mm, Cl 8.8

1шт.

8

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

1шт.

9

14059211

FLANGE NUT,M6 x 1, Flg, Cl 8

2шт.

10

87737135

CABLE

1шт.

Engine Side Power Harness

1шт.

W/CAB

1шт.

10

87737137

CABLE

1шт.

Engine Side Power Harness

1шт.

L/CAB

1шт.

11

87368933

ELECTRIC CABLE

1шт.

Engine Side Harness

1шт.

W/CAB

1шт.

11

87369033

CABLE

1шт.

Engine Side Harness

1шт.

L/CAB

1шт.

12

87690426

CHANNEL

1шт.

13

13516920

STUD,M8 x 12mm x 22mm, Cl 8.8

M8 x 12 x 22

2шт.

14

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

15

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 26
