Запчасти Case IH FARMALL 75C (1.75.0/03[01A]) - FRONT HPL AND PTO AXLE MOUNTED WITH ELECTRONIC CONTROL - ELECTRIC CONTROLS - D6321 (VAR.330848-331848-332848-333848) (06) - ELECTRICAL SYSTEMS

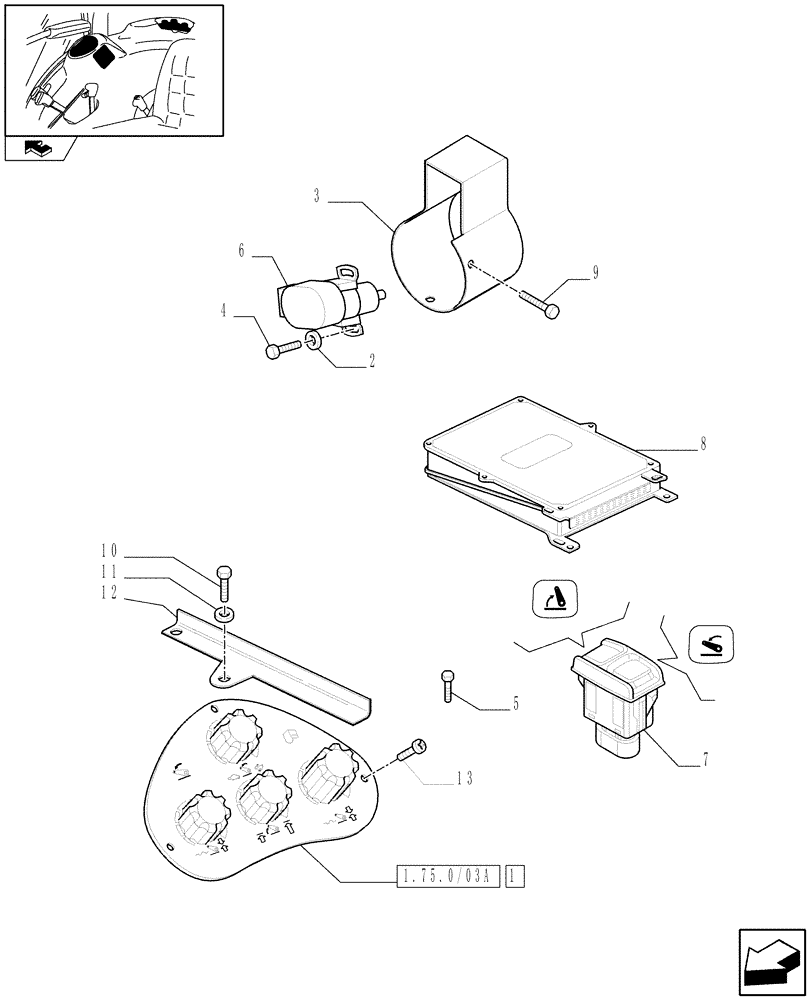

Схема запчастей Case IH FARMALL 75C - (1.75.0/03[01A]) - FRONT HPL AND PTO AXLE MOUNTED WITH ELECTRONIC CONTROL - ELECTRIC CONTROLS - D6321 (VAR.330848-331848-332848-333848) (06) - ELECTRICAL SYSTEMS
11
13
4
1
home
1.75.0/03a
9
5
8
6
3
10
7
12
2

Артикул

Название

Примечание

Количество

1

47057119

PANEL

ASSY

1шт.

2

10519301

WASHER,5.3mm ID x 9.55mm OD x 1mm Thk

2шт.

3

87301837

SHIELD

1шт.

4

13274124

SCREW,Pozidriv Pan Hd, M5 x 14mm, Cl 8.8, Full Thd

2шт.

5

14775214

SCREW,Cross Rec Cheese Hd, M4 x 8mm, Cl 5.8

6шт.

6

47057487

SENSOR

1шт.

7

87653082

SWITCH

1шт.

8

84176311

ECU

EFH

1шт.

9

13276021

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 8.8, Full Thd

3шт.

10

14301824

HEX SOC SCREW,M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

11

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

12

87492304

SUPPORT

1шт.

13

5182260

SELF-TAP SCREW,M5 x 16mm L

5 x 16

1шт.

Выбрано товаров: 13
