Запчасти Case IH FARMALL 75C (1.75.0/03[01]) - FRONT HPL AND PTO AXLE MOUNTED WITH ELECTRONIC CONTROL - ELECTRIC CONTROLS - C6321 (VAR.330848-331848-332848-333848) (06) - ELECTRICAL SYSTEMS

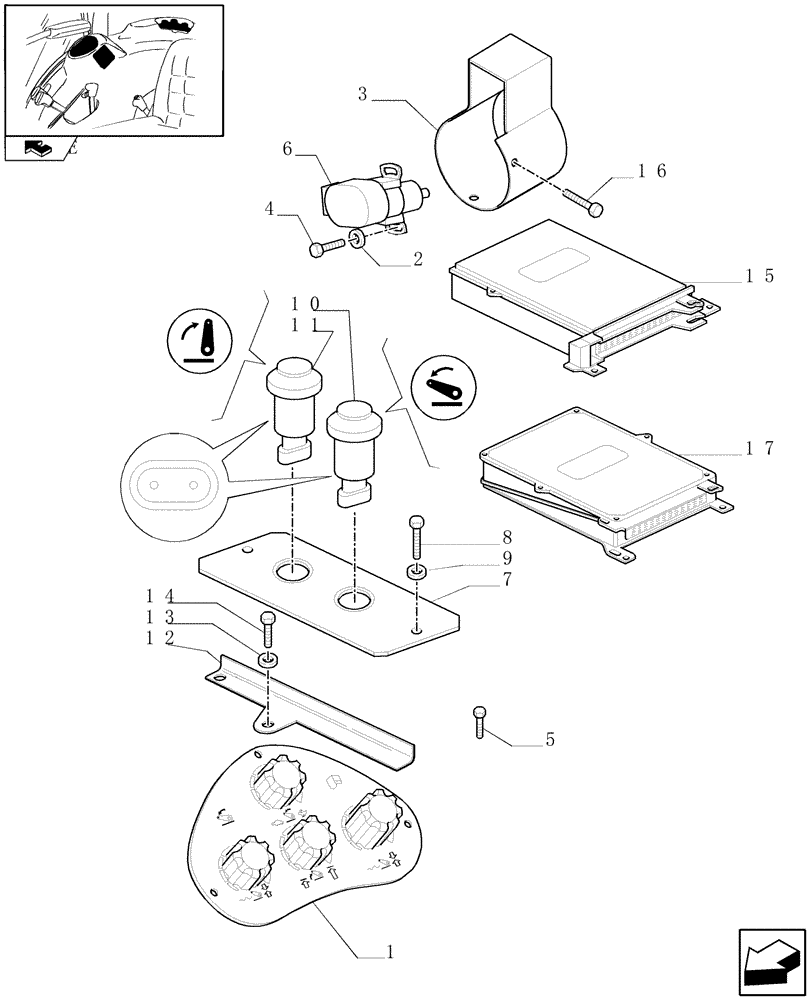

Схема запчастей Case IH FARMALL 75C - (1.75.0/03[01]) - FRONT HPL AND PTO AXLE MOUNTED WITH ELECTRONIC CONTROL - ELECTRIC CONTROLS - C6321 (VAR.330848-331848-332848-333848) (06) - ELECTRICAL SYSTEMS
12
6
home
10
8
11
17
15
4
16
1
3
9
13
14
5
7
2

Артикул

Название

Примечание

Количество

1

47057119

PANEL

ASSY

1шт.

2

10519301

WASHER,5.3mm ID x 9.55mm OD x 1mm Thk

2шт.

3

87301837

SHIELD

1шт.

4

13274124

SCREW,Pozidriv Pan Hd, M5 x 14mm, Cl 8.8, Full Thd

2шт.

5

14305121

HEX SOC SCREW,M6 x 12mm, Cl 8.8

6шт.

6

47057487

SENSOR

1шт.

7

47056045

BRACKET

1шт.

8

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

9

12604274

WAVE WASHER,Wave, M6.4

2шт.

10

47057242

HITCH UP/DOWN SWITCH

1шт.

11

47057241

HITCH UP/DOWN SWITCH

1шт.

12

87492304

SUPPORT

1шт.

13

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

14

14301824

HEX SOC SCREW,M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

15

47057488

ECU

, Serial Range: -C6314

1шт.

16

13276021

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 8.8, Full Thd

3шт.

17

84176311

ECU

EFH, Start Serial: D6314

1шт.

Выбрано товаров: 17
