Запчасти Case IH FARMALL 75C (1.75.0/02) - FRONT HPL AND PTO CHASSIS MOUNTED WITH ELECTRONIC CONTROL - ELECTRIC CONTROLS (VAR.330404-331404-332404-333404) (06) - ELECTRICAL SYSTEMS

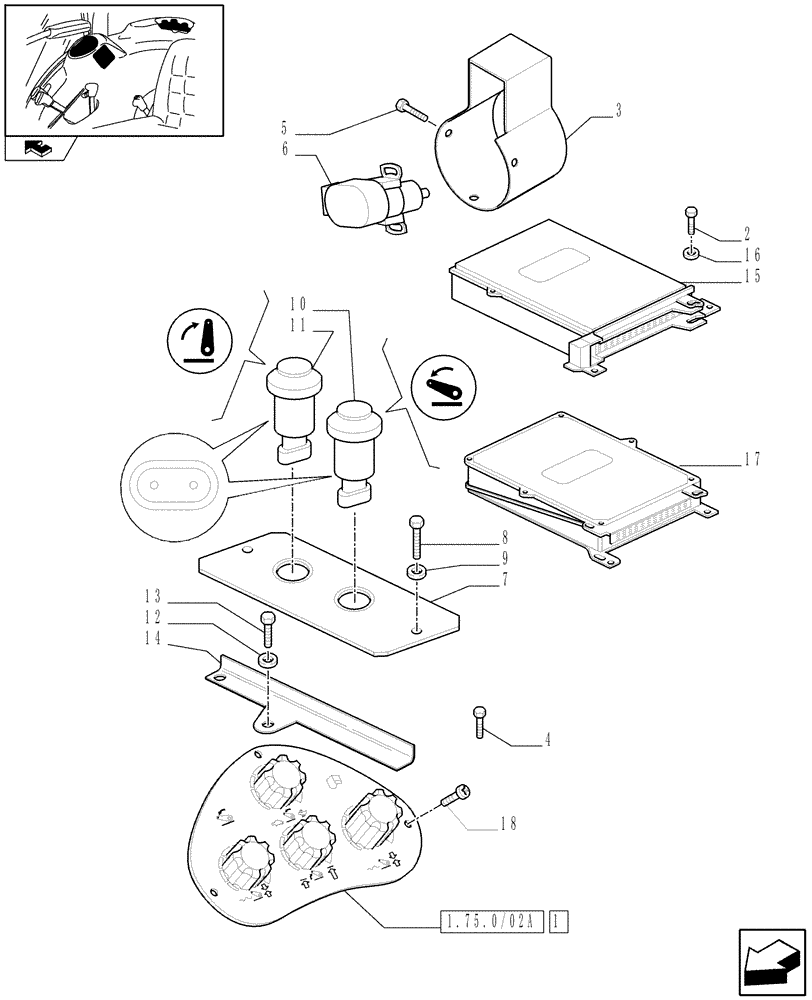

Схема запчастей Case IH FARMALL 75C - (1.75.0/02) - FRONT HPL AND PTO CHASSIS MOUNTED WITH ELECTRONIC CONTROL - ELECTRIC CONTROLS (VAR.330404-331404-332404-333404) (06) - ELECTRICAL SYSTEMS
13
home
1.75.0/02a
18
9
15
11
6
3
8
17
2
14
5
7
1
4
16
10
12

Артикул

Название

Примечание

Количество

1

47133067

PANEL

ASSY

1шт.

2

13274124

SCREW,Pozidriv Pan Hd, M5 x 14mm, Cl 8.8, Full Thd

2шт.

3

87301837

SHIELD

1шт.

4

14775214

SCREW,Cross Rec Cheese Hd, M4 x 8mm, Cl 5.8

6шт.

5

13276017

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8, Full Thd

3шт.

6

87747160

SENSOR

1шт.

Angle, EFH

1шт.

7

47056045

BRACKET

1шт.

8

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

9

12604274

WAVE WASHER,Wave, M6.4

2шт.

10

47057242

HITCH UP/DOWN SWITCH

1шт.

FHPL, External, Down

1шт.

11

47057241

HITCH UP/DOWN SWITCH

1шт.

FHPL, External, UP

1шт.

12

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

13

14301824

HEX SOC SCREW,M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

14

87492304

SUPPORT

1шт.

15

47057488

ECU

, Serial Range: -C6314

1шт.

Control EFH

1шт.

16

10519304

WASHER,5.3mm ID x 9.55mm OD x 1mm Thk

2шт.

17

84176311

ECU

, Start Serial: D6314

1шт.

Control EFH

1шт.

18

5182260

SELF-TAP SCREW,M5 x 16mm L

5 x 16

1шт.

Выбрано товаров: 23
