Запчасти Case IH FARMALL 75C (1.75.0/01) - 16X16 AND 32X16 HYDRAULIC TRANSMISSION - ELECTRONIC CONTROL UNIT (VAR.330275-330278) (06) - ELECTRICAL SYSTEMS

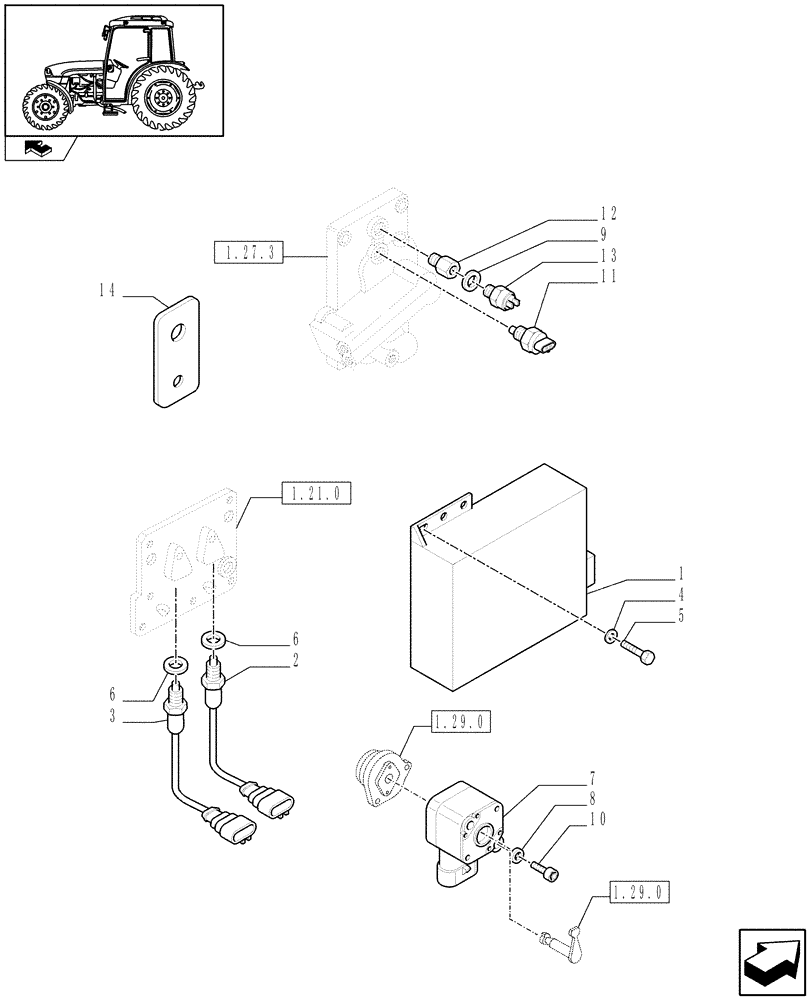

Схема запчастей Case IH FARMALL 75C - (1.75.0/01) - 16X16 AND 32X16 HYDRAULIC TRANSMISSION - ELECTRONIC CONTROL UNIT (VAR.330275-330278) (06) - ELECTRICAL SYSTEMS
home
1
3
6
8
7
14
13
1.27.3
1.29.0
1.29.0
1.21.0
6
10
9
12
5
2
4
11

Артикул

Название

Примечание

Количество

1

87383738

ECU

ICM, Power Shuttle, Serial Range: -C6948

1шт.

1

84387340

ECU

, Start Serial: D6948

1шт.

2

87585979

SWITCH

Grey

1шт.

Gear Control Neutral Position Detector

1шт.

3

87585980

SWITCH

Green

1шт.

Range Control Neutral Position Detector

1шт.

4

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

5

14304627

HEX SOC SCREW,M5 x 14mm, Cl 8.8, Full Thd

2шт.

6

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

M14

2шт.

7

87605247

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Synchro

1шт.

32x16 HI-LO and Power Shuttle Transm., VAR.330275

1шт.

7

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Universal

1шт.

16x16 With Synchro Gears and Power Shuttle, VAR.330278

1шт.

8

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.

9

10280060

SEAL,M14.2 x 20 x 1.5

1шт.

10

13274911

SCREW,Cross Pan Hd, M5 x 35mm

2шт.

11

82028133

SENSOR,3/8"-18

1шт.

Transmission Temperature

1шт.

12

87745448

HYD CONNECTOR,M12 x 1.5 NPT x M12 x 1.5 NPT

1шт.

16x16 With Synchro Gears and Power Shuttle, VAR.330278

1шт.

13

5157750

PRESSURE SWITCH

1шт.

Indicates Oil Missing in DT Control Pipe

1шт.

Transmission Oil

1шт.

16x16 With Synchro Gears and Power Shuttle, VAR.330278

1шт.

14

84226414

BRACKET

1шт.

32x16 HI-LO and Power Shuttle Transm., VAR.330275

1шт.

Выбрано товаров: 26
