Запчасти Case IH FARMALL 75C (1.48.2/01) - 6 REAR BALLAST (32KG) (VAR.330471) (05) - REAR AXLE

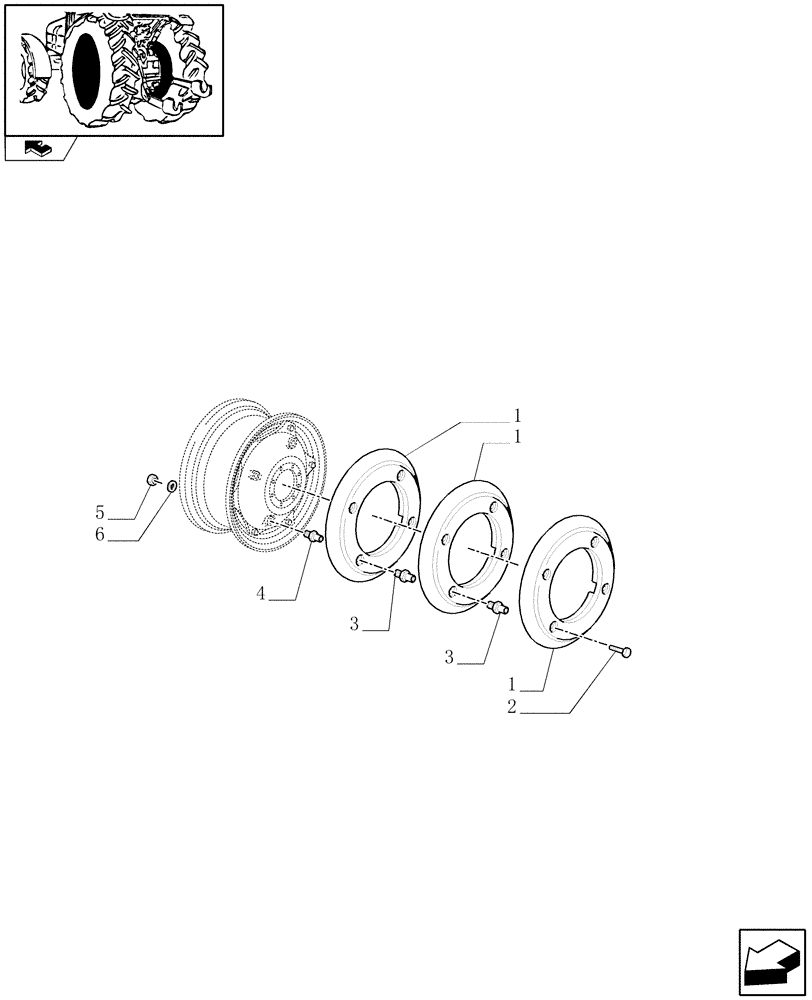

Схема запчастей Case IH FARMALL 75C - (1.48.2/01) - 6 REAR BALLAST (32KG) (VAR.330471) (05) - REAR AXLE
home
1
6
1
3
3
2
4
1
5

Артикул

Название

Примечание

Количество

1

47131265

WHEEL DISC,330mm Dia, 4 Bolts, CNH Dark Grey

32kg.

6шт.

2

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

3

44018047

SCREW,M16 x 1.5 x 78mm

M16 x 1.5 x 78

16шт.

4

44018046

SCREW,M16 x 1.5 x 60mm

M16 x 1.5 x 60

8шт.

5

12164114

NUT,Hex, M16, 1.5mm Pitch, 13mm High, Cl 8

M16 x 1.5

8шт.

6

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

8шт.

Выбрано товаров: 6
