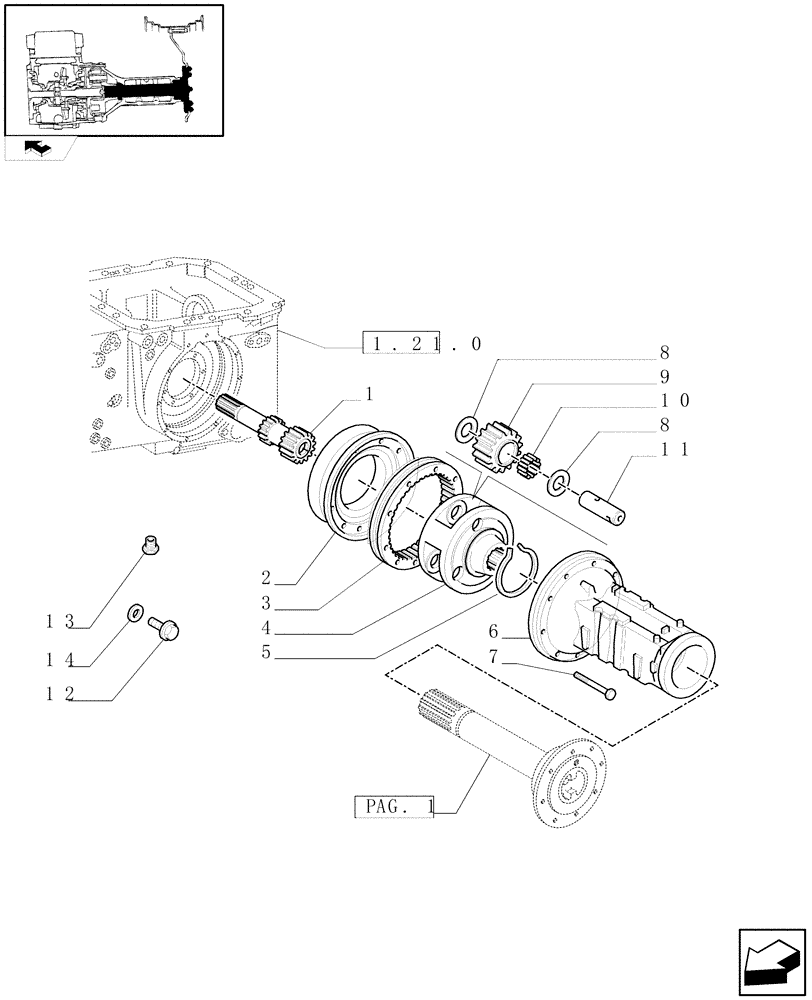

Запчасти Case IH FARMALL 75C (1.48.1/01[02]) - WATERPROOF TRANSMISSION - FINAL DRIVE, GEARS AND SHAFTS (VAR.332448-333448-330449) (05) - REAR AXLE

1

87543134

HALF SHAFT,20/29mm ID x 212.5mm L, 13/21T

RH

1шт.

1

87543135

HALF SHAFT,19/29mm ID x 244.5mm L, 13/21T

LH

1шт.

2

5172087

SPACER,175mm ID x 337mm OD x 53mm L

2шт.

3

5168232

RING GEAR,250.9mm ID x 322mm OD x 27.5 mm Tnk, 65T

2шт.

4

5168229

CARRIER

2шт.

5

4998883

CIRCLIP,112mm ID x 119mm OD

D=119

2шт.

6

5182113

FINAL DRIVE HOUSING

2шт.

7

15978324

BOLT,Hex, M14 x 1.5 x 140mm, Cl 8.8

1шт.

7

11422124

BOLT,Hex, M14 x 1.5 x 130, 8.8

3шт.

7

15978124

BOLT,Hex, M14 x 1.5 x 120mm, Cl 8.8

1шт.

8

4997200

THRUST WASHER,35.8mm ID x 60mm OD x 1mm Thk

12шт.

9

5168231

GEAR,25T

6шт.

10

5168230

NEEDLE BEARING,35.7mm ID x 49.7mm OD x 38mm W

6шт.

11

5124312

PIN,35.7mm OD x 82mm L

6шт.

12

5198705

PLUG

H=20

2шт.

13

5145574

PLUG,M7 X 12.5mm

D=7

1шт.

14

10261760

COPPER WASHER,20mm ID x 28mm OD x 1.5mm Thk

2шт.
