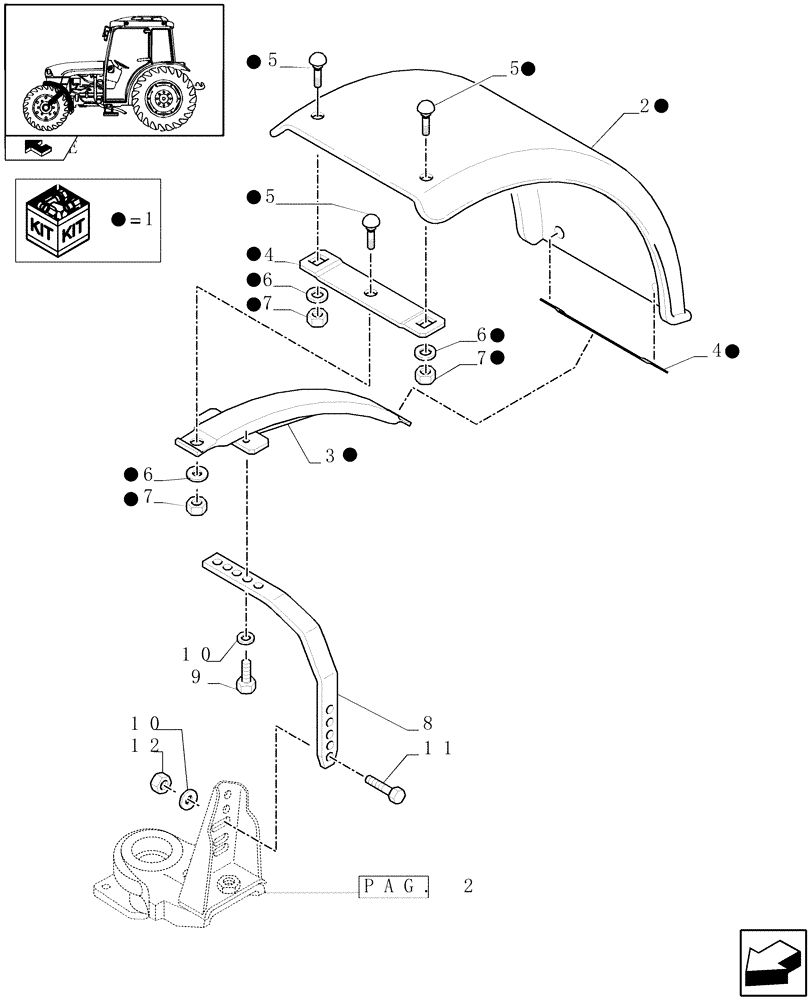

Запчасти Case IH FARMALL 75C (1.43.0/04[01]) - WIDE DYNAMIC FRONT FENDERS (4WD) (VAR.330486) (04) - FRONT AXLE & STEERING

1

87529751

FRONT FENDER,400mm

ASSY

2шт.

2

5185182

COVER ASSY

L=400MM

1шт.

3

47132609

SUPPORT

1шт.

4

82021040

SUPPORT

2шт.

5

82021059

BOLT,Hex, M10 x 1.25 x 31mm

M10 x 1.25 x 25

6шт.

6

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

6шт.

7

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

6шт.

8

87390029

SUPPORT

2шт.

9

15540524

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8

4шт.

10

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

8шт.

11

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

4шт.

12

16105014

LOCK NUT,M12 x 1.25

4шт.
