Запчасти Case IH FARMALL 75C (1.43.0/02) - WIDE FRONT FENDERS (4WD) (VAR.330485-331485) (04) - FRONT AXLE & STEERING

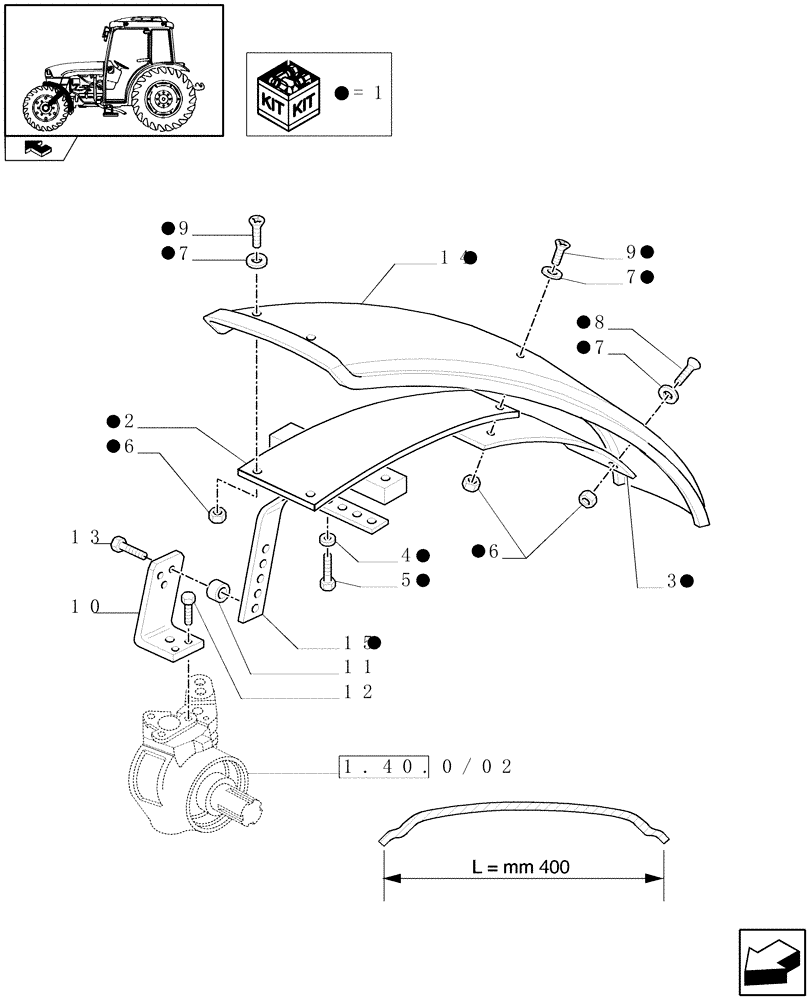

Схема запчастей Case IH FARMALL 75C - (1.43.0/02) - WIDE FRONT FENDERS (4WD) (VAR.330485-331485) (04) - FRONT AXLE & STEERING
12
5
1.40.0/02
home
1
1
9
1
1
1
1
11
2
6
15
3
1
4
7
1
8
1
7
1
10
9
7
1
1
1
14
13
1
6
1

Артикул

Название

Примечание

Количество

1

5186947

FRONT FENDER

ASSY, RH

1шт.

1

5186948

FRONT FENDER

ASSY, LH

1шт.

2

5179697

FRAME

RH

1шт.

2

5179698

FRAME

LH

1шт.

3

5179701

REINFORCEMENT

LH

1шт.

3

5179705

REINFORCEMENT

RH

1шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

5

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

4шт.

6

12574511

LOCK NUT,M10 x 1.25, Cl 8

8шт.

7

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

8

14782514

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 20mm, Cl 5.8

2шт.

9

14782614

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 30mm, Cl 5.8

6шт.

10

5185292

SUPPORT

2шт.

Wide Front Fenders, VAR.330485

1шт.

10

5185293

SUPPORT

2шт.

Wide Front Fenders with Brakes, VAR.331485

1шт.

11

5166193

SPACER,13mm ID x 40mm OD x 28mm L

4шт.

Wide Front Fenders with Brakes, VAR.331485

1шт.

12

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

8шт.

Wide Front Fenders with Brakes, VAR.331485

1шт.

12

14233934

BOLT,Hex, M10 x 1.25 x 45mm, Cl 10.9

6шт.

Wide Front Fenders, VAR.330485

1шт.

13

15541131

SCREW,Hex, M12 x 1.25 x 65mm, Cl 10.9

4шт.

14

5185182

COVER ASSY

2шт.

15

5186928

PILLAR

2шт.

Выбрано товаров: 25
