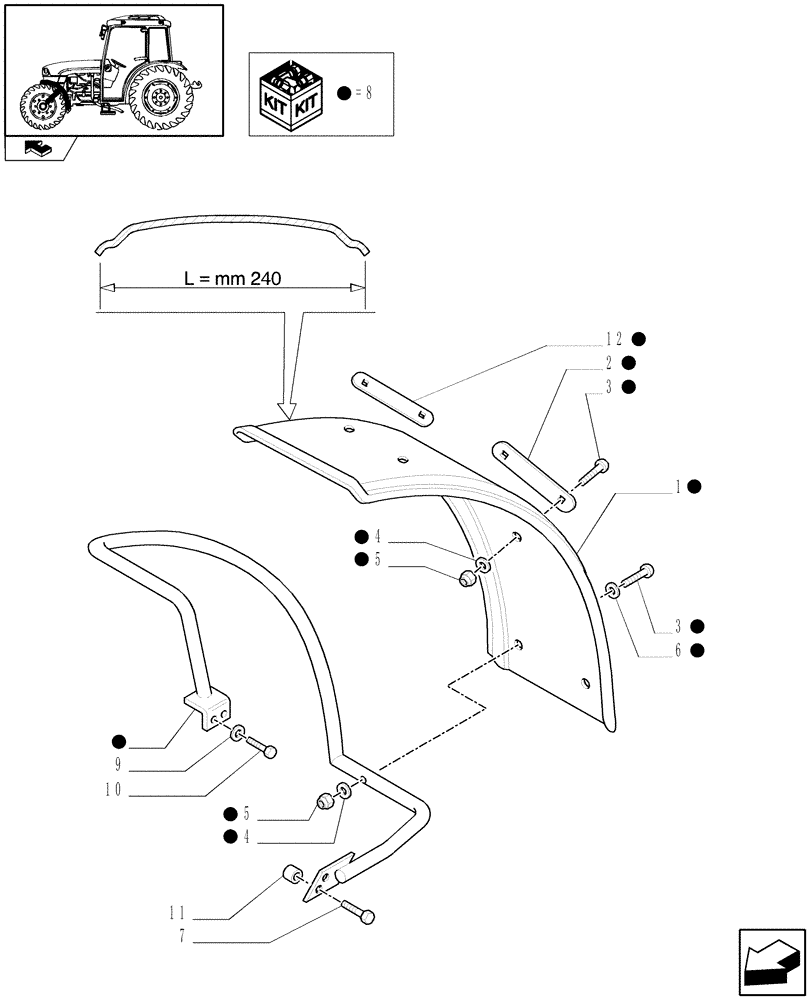

Запчасти Case IH FARMALL 75C (1.43.0) - 2WD FRONT MUDGUARDS (VAR.330863) (04) - FRONT AXLE & STEERING

1

5125270

COVER ASSY

2шт.

2

5122260

COVER PLATE

230MM

2шт.

3

5186916

CARRIAGE BOLT

M8 x 45

12шт.

4

12605574

WASHER

D=8

12шт.

5

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

12шт.

6

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

12шт.

7

16215324

BOLT,Hex, M14 x 1.5 x 90mm, Cl 8.8

2шт.

8

5185356

FRONT FENDER

ASSY, LH

1шт.

8

5185403

FRONT FENDER

ASSY, RH

1шт.

9

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

10

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

11

5125186

SPACER

17 x 32 x 8

2шт.

12

5122259

REINFORCEMENT

150MM

4шт.
