Запчасти Case IH FARMALL 75C (1.42.0) - HYDRAULIC PUMP (04) - FRONT AXLE & STEERING

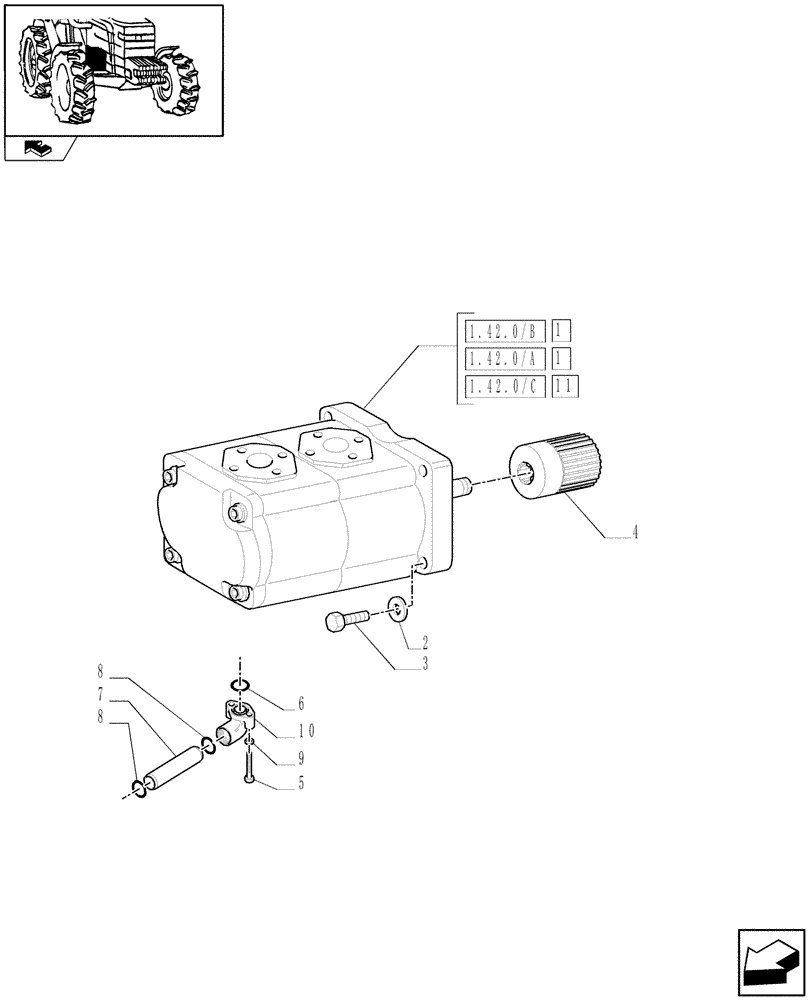

Схема запчастей Case IH FARMALL 75C - (1.42.0) - HYDRAULIC PUMP (04) - FRONT AXLE & STEERING
5
4
1
3
2
8
home
1.42.0/c
1.42.0/a
1.42.0/b
11
7
8
9
1
10
6

Артикул

Название

Примечание

Количество

1

87593047

HYDRAULIC PUMP,19.33 CC

ASSY, 28 x 47 l/min

1шт.

1

87593047R

REMAN-HYD PUMP

ASSY, 28 x 47 l/min

1шт.

1

87593047C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

87593048

HYDRAULIC PUMP

ASSY, 34 x 62 l/min, Serial Range: -C5996

1шт.

Mega Flow Pump & Oil Cooler, VAR.330823-332823

1шт.

87472286R

REMAN-HYD PUMP

FARMALL 75C, (4/08-), REMAN FOR NEW P/N 87593048

1шт.

87472286C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

3

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

87736196

SHAFT

1шт.

5

14306824

HEX SOC SCREW,M8 x 1.25 x 45mm, Cl 8.8, Full Thd

2шт.

16x16 with Synchro Gears & Power Shuttle, VAR.330278-330275

1шт.

6

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

16x16 with Synchro Gears & Power Shuttle, VAR.330278-330275

1шт.

7

5184443

RIGID TUBE

1шт.

16x16 with Synchro Gears & Power Shuttle, VAR.330278-330275

1шт.

8

70935121

O-RING,-213, Cl 7, .921" ID x .139" Thk

2шт.

16x16 with Synchro Gears & Power Shuttle, VAR.330278-330275

1шт.

9

1193874

LOCK WASHER

2шт.

16x16 with Synchro Gears & Power Shuttle, VAR.330278-330275

1шт.

10

5178486

HYD CONNECTOR

1шт.

16x16 with Synchro Gears & Power Shuttle, VAR.330278-330275

1шт.

11

87472286

HYDRAULIC PUMP,21.95 CC

ASSY, Start Serial: D5996

1шт.

Mega Flow Pump & Oil Cooler, VAR.330823-332823

1шт.

87472286R

REMAN-HYD PUMP

FARMALL 75C, (4/08-)

1шт.

87472286C

CORE-HYDRAULIC PUMP

Return Number

1шт.

Выбрано товаров: 26
