(1.41.0/01[04]) - 2WD FRONT AXLE WITH LOW PROFILE - STEERING CYLINDER (VAR.330582)

Запчасти Case IH FARMALL 75C (1.41.0/01[04]) - 2WD FRONT AXLE WITH LOW PROFILE - STEERING CYLINDER (VAR.330582) (04) - FRONT AXLE & STEERING

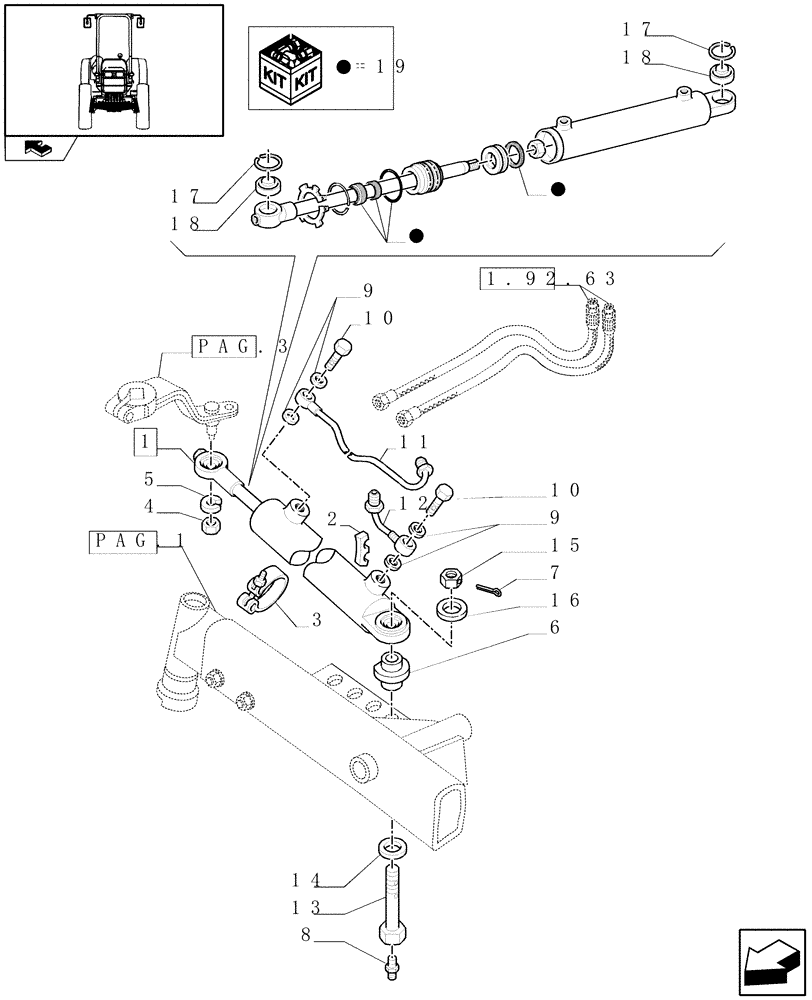

Схема запчастей Case IH FARMALL 75C - (1.41.0/01[04]) - 2WD FRONT AXLE WITH LOW PROFILE - STEERING CYLINDER (VAR.330582) (04) - FRONT AXLE & STEERING
3
16
6
1.92.63
10
7
19
19
19
8
17
11
15
18
17
2
14
18
9
13
home
pag.1
pag.3
12
4
9
10
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5178707

SERVO STEERING CYL

ASSY

1шт.

1

5178707R

REMAN-HYD CYLINDER

FARMALL 65C, FARMALL 75C, All TRACTOR (04/08), ASSY, WITH LOW PROFILE - STEERING CYLINDER (4/08-)

1шт.

1

5178707C

CORE-HYD CYLINDER

Return Number

1шт.

2

5121043

SPACER

1шт.

3

13000990

COLLAR,60mm - 80mm, Worm Gear

D=60-80

1шт.

4

12575921

NUT,M16 x 1.5, Cl 05

1шт.

5

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

1шт.

6

87621273

BUSHING,20mm ID x 50mm OD x 32mm L

1шт.

7

10734901

COTTER PIN,M4 x 40

1шт.

8

87414

LUBE NIPPLE,1/4" - 28

1шт.

9

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

14.86 x 22.23

4шт.

10

4864083

BANJO BOLT,M14 x 1.5 x 30mm

M14 x 1,5 x 30

2шт.

11

5179224

RIGID TUBE

RH

1шт.

12

5179222

RIGID TUBE

LH

1шт.

13

5175430

PIN,20mm OD x 88mm L

1шт.

14

11191974

BELLEVILLE WASHER,M22 Bolt Size x 42mm OD x 5mm Thk

1шт.

15

10724621

SLOTTED NUT,Hex, M18 x 1.5, R80 ZND

M18

1шт.

16

5168900

WASHER,18.2mm ID x 26mm OD x 4mm Thk

1шт.

17

5190903

LOCKING RING

2шт.

18

5190901

BUSHING

2шт.

19

5190916

SEAL KIT

1шт.
