Запчасти Case IH FARMALL 75C (1.41.0[02]) - 2WD FRONT AXLE - STEERING KNUCKLE AND HUB (VAR.330581) (04) - FRONT AXLE & STEERING

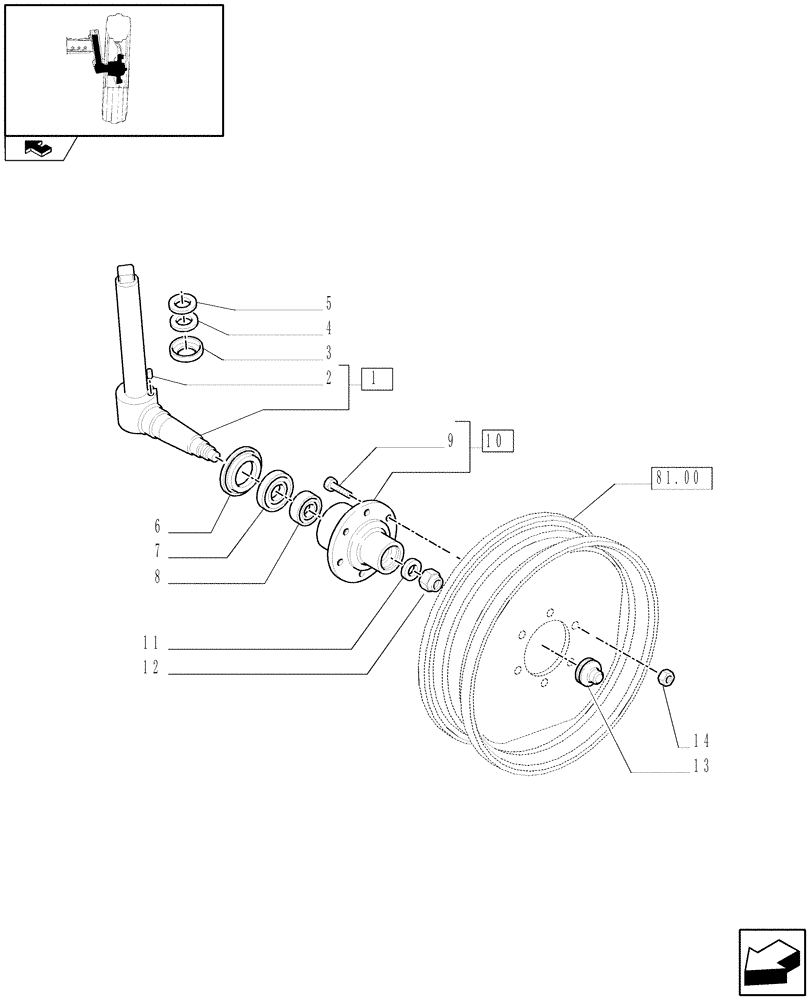

Схема запчастей Case IH FARMALL 75C - (1.41.0[02]) - 2WD FRONT AXLE - STEERING KNUCKLE AND HUB (VAR.330581) (04) - FRONT AXLE & STEERING
6
14
8
2
1
7
10
4
5
81.00
11
home
12
3
9
13

Артикул

Название

Примечание

Количество

1

5166099

STUB AXLE/STEERING S

RH ASSY

1шт.

1

5166101

STUB AXLE/STEERING S

LH ASSY

1шт.

2

10839510

DOWEL,M6 x 9

2шт.

3

566125

CUP

2шт.

4

5144475

THRUST WASHER,38mm ID x 61mm OD x 4mm Thk

2шт.

5

561953

THRUST WASHER,38.12mm ID x 61mm OD x 4mm Thk

2шт.

6

4951077

SEAL,50.7mm ID x 91.5mm OD x 11mm Thk

2шт.

7

5132342

TAPERED BEARING,Roller, 41.3mm ID x 73.4mm OD x 17.6mm W

2шт.

8

5132343

TAPERED BEARING,25.4mm ID x 57.17mm OD x 19.43mm W

2шт.

9

81816580

WHEEL BOLT,1/2" - 20 x 1 3/4"

12шт.

10

5166086

HUB

2шт.

11

559715

WASHER,20.5mm ID x 32mm OD

2шт.

12

14044271

NUT,Hex, M20 x 1.5

M20

2шт.

13

4957312

HUB CAP

2шт.

14

81815739

WHEEL NUT,1/2"-20, 0.65" High, ZND

12шт.

Выбрано товаров: 15
