(1.40.6/13) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK WITH FRONT BRAKE (40 KM/H)-PIPES (VAR.331329-332329-335329)

Запчасти Case IH FARMALL 75C (1.40.6/13) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK WITH FRONT BRAKE (40 KM/H)-PIPES (VAR.331329-332329-335329) (04) - FRONT AXLE & STEERING

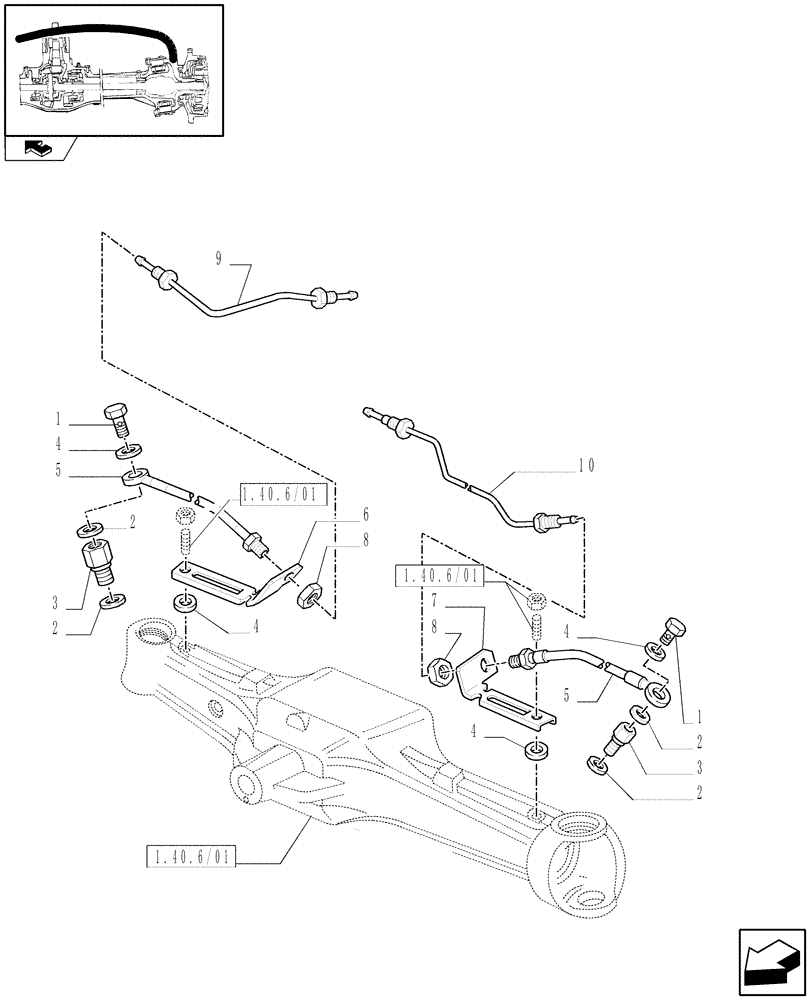

Схема запчастей Case IH FARMALL 75C - (1.40.6/13) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK WITH FRONT BRAKE (40 KM/H)-PIPES (VAR.331329-332329-335329) (04) - FRONT AXLE & STEERING
3
6
7
1.40.6/01
1.40.6/01
1.40.6/01
home
2
5
4
2
4
4
9
10
8
1
2
8
5
2
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12 x 1.25 x 22

2шт.

2

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

SEAL WASHER 15 x 18 x 1.5

4шт.

2

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

VAR.332329

4шт.

3

5182367

HYD CONNECTOR

2шт.

4

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

4шт.

5

5155700

HOSE,4.75mm ID x 315.00mm

2шт.

6

5182988

BRACKET

RH

1шт.

7

5182989

ELBOW

LH

1шт.

8

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

9

47132777

RIGID TUBE

RH

1шт.

10

47132778

RIGID TUBE

LH

1шт.
