Запчасти Case IH FARMALL 75C (1.40.6/10[03]) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK WITH FRONT BRAKE (40 KM/H)-EPICYCLIC REDUCTION GEAR (VAR.331329-332329-335329) (04) - FRONT AXLE & STEERING

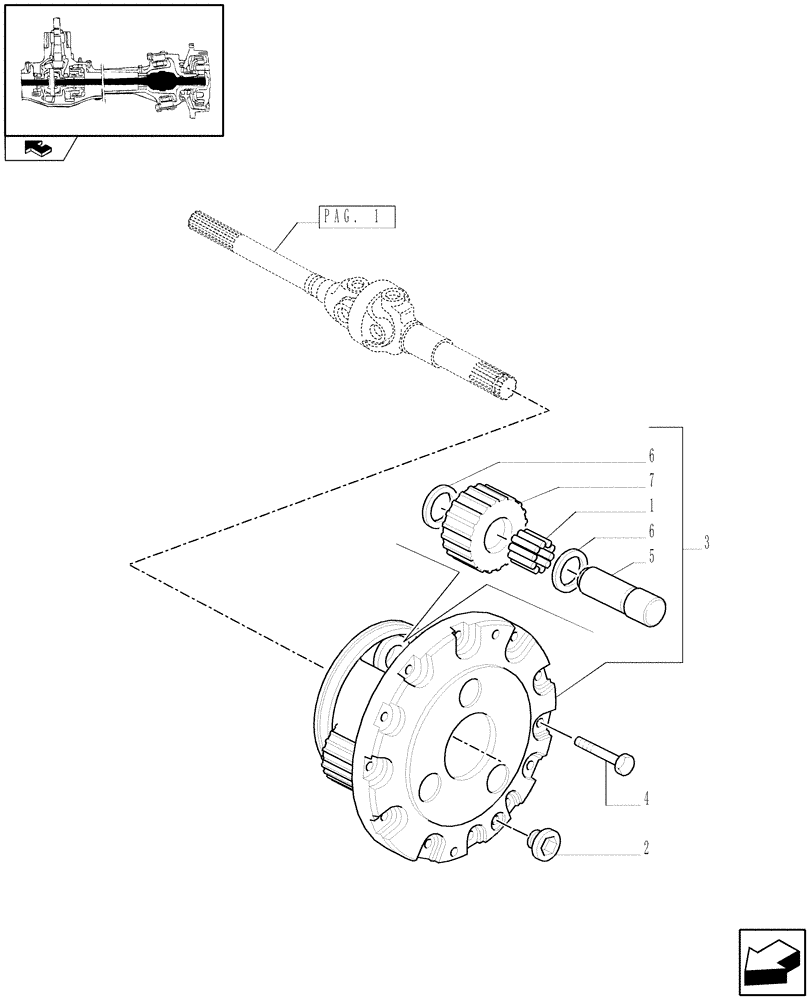

Схема запчастей Case IH FARMALL 75C - (1.40.6/10[03]) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK WITH FRONT BRAKE (40 KM/H)-EPICYCLIC REDUCTION GEAR (VAR.331329-332329-335329) (04) - FRONT AXLE & STEERING
2
4
pag. 1
7
6
3
1
5
6
home

Артикул

Название

Примечание

Количество

1

87565312

NEEDLE BEARING,25.6mm ID x 35.6mm OD x 29.8mm W

25.6 x 35.6 x 29.8

3шт.

2

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

3

5181047

CARRIER

ASSY

2шт.

4

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

20шт.

5

5181050

PIN,27mm OD x 63.5mm L

3шт.

6

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

25 x 45 x 0.8

6шт.

7

5169137

GEAR,23T

3шт.

Выбрано товаров: 7
