Запчасти Case IH FARMALL 75C (1.40.6/07) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK WITH FRONT BRAKE (40 KM/H) - DIFFERENTIAL (VAR.331329-332329-335329) (04) - FRONT AXLE & STEERING

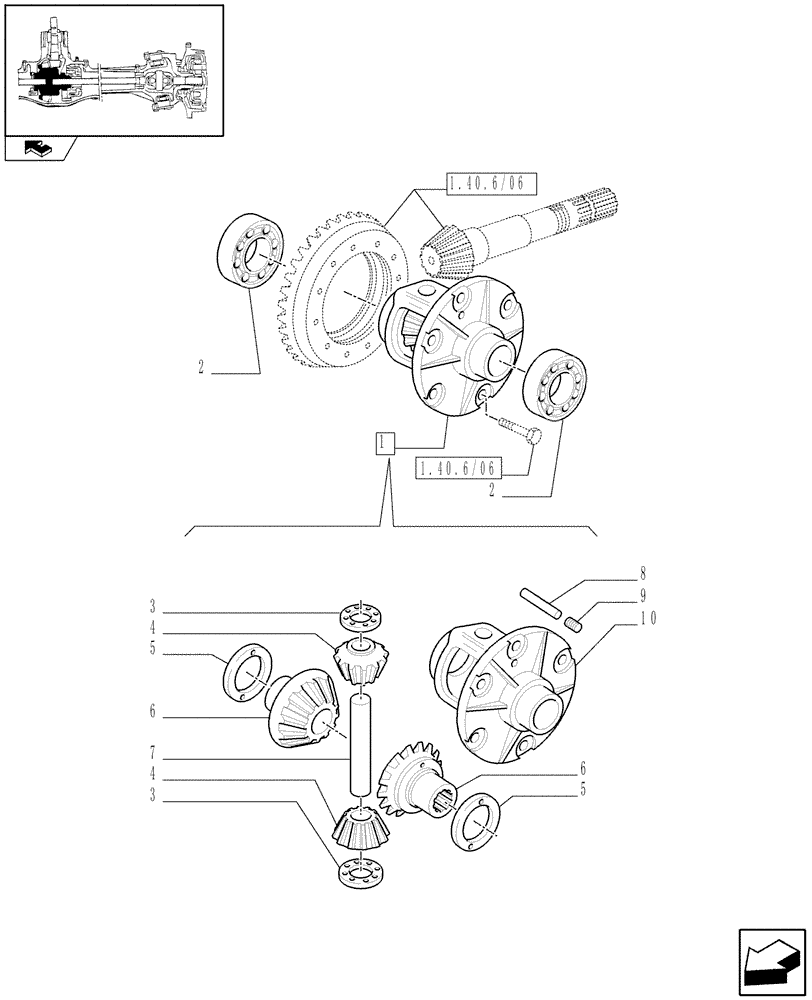

Схема запчастей Case IH FARMALL 75C - (1.40.6/07) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK WITH FRONT BRAKE (40 KM/H) - DIFFERENTIAL (VAR.331329-332329-335329) (04) - FRONT AXLE & STEERING
3
10
2
1
4
5
4
1.40.6/06
home
1.40.6/06
9
6
5
2
7
3
8
6

Артикул

Название

Примечание

Количество

1

5167879

DIFFERENTIAL GEAR

ASSY

1шт.

2

26799980

BEARING ASSY,Roller, 50mm ID x 90mm OD x 21.75mm W

50 x 90 x 21.75

2шт.

3

5104408

THRUST WASHER,22mm ID x 45mm OD x 1.5mm Thk

2шт.

4

4987111

BEVEL PINION,59.5mm OD, 12T

2шт.

With machined Teeth

1шт.

4

87550439

IDLER PINION

2шт.

With moulded Teeth

1шт.

5

5167655

THRUST WASHER,30.2mm ID x 54mm OD x 1.5mm Thk

1шт.

5

5167694

THRUST WASHER,30.2mm ID x 54mm OD x 1.6mm Thk

1шт.

5

5167702

THRUST WASHER,30.2mm ID x 54mm OD x 1.7mm Thk

1шт.

5

5167703

THRUST WASHER,30.2mm ID x 54mm OD x 1.8mm Thk

1шт.

5

5183693

THRUST WASHER,30.2mm ID x 54mm OD x 1.9mm Thk

1шт.

5

5183694

THRUST WASHER,30.2mm ID x 54mm OD x 2mm Thk

1шт.

6

5167717

PLANETARY GEAR,10/20T

2шт.

With machined Teeth

1шт.

6

87550440

PLANETARY GEAR,10/20T

2шт.

With moulded Teeth

1шт.

7

5103612

PIN,22mm OD x 123mm L

1шт.

8

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

9

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

10

5174802

HOUSING

1шт.

Выбрано товаров: 21
