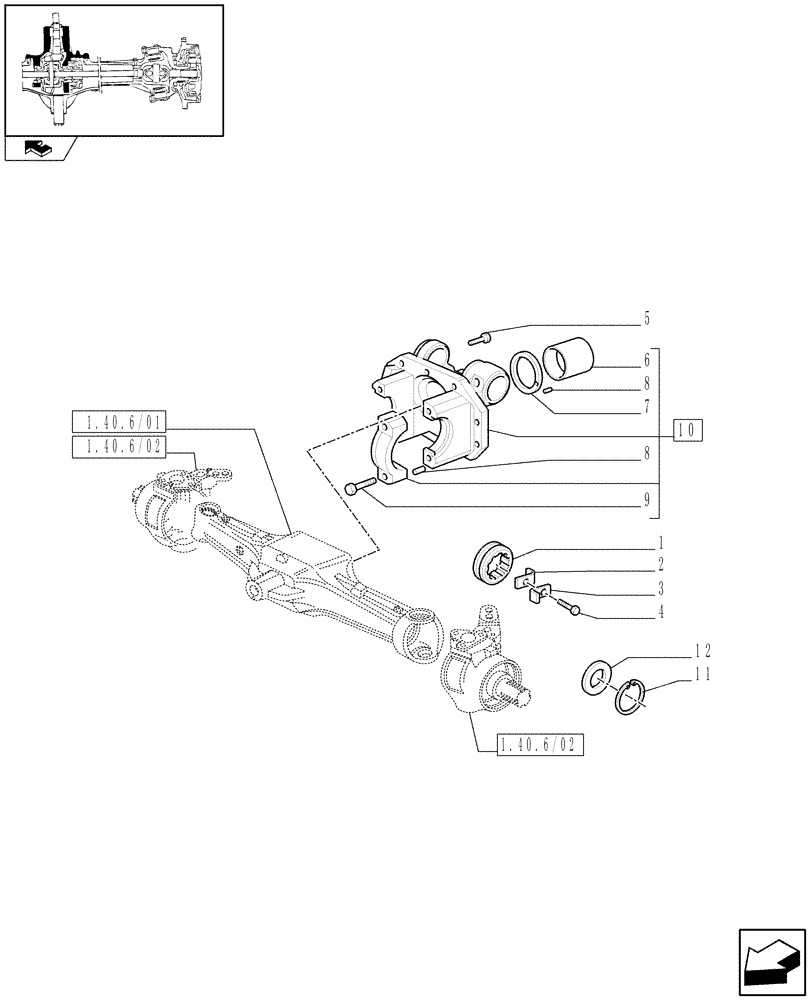

Запчасти Case IH FARMALL 75C (1.40.6/05) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK WITH FRONT BRAKE (40 KM/H) - SUPPORT (VAR.331329-332329-335329) (04) - FRONT AXLE & STEERING

1

4966240

BEARING LOCK NUT,M95 x 2, 15T

1шт.

2

4966243

ADJUSTING PLATE

1шт.

3

562659

PLATE

1шт.

4

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

87332797

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8

M12 x 1.25 x 35

3шт.

5

87332798

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8

M12 x 1.25 x 120

2шт.

5

87323720

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8

M12 x 1.25 x 45

6шт.

6

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

7

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

90 x 136 x 5

1шт.

8

4966244

PIN,5mm OD x 15mm L

M5 x 15

5шт.

9

14275334

BOLT,Lock, Hex, M12 x 1.25 x 70mm, Cl 10.9

M12 x 1.25 x 70

2шт.

9

14275430

SCREW,M12 x 1.25 x 80mm

M12 x 1.25 x 80

2шт.

10

87335147

SUPPORT

ASSY

1шт.

11

11062476

SNAP RING,M90, Int

1шт.

12

5167750

SHIM,0.90mm Thk

1шт.

12

5167751

SHIM,1.00mm Thk

1шт.

12

5167752

SHIM,1.10mm Thk

1шт.

12

5167753

SHIM,1.20mm Thk

1шт.

12

5167754

SHIM,1.30mm Thk

1шт.

12

5167755

SHIM,1.40mm Thk

1шт.

12

5167756

SHIM,1.50mm Thk

1шт.

12

5167757

SHIM,1.60mm Thk

1шт.

12

5167758

SHIM,1.70mm Thk

1шт.

12

5167759

SHIM,1.80mm Thk

1шт.

12

5167760

SHIM,1.90mm Thk

1шт.

12

5167761

SHIM,2.00mm Thk

1шт.
