Запчасти Case IH FARMALL 75C (1.40.6/03) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK WITH FRONT BRAKE (40 KM/H) - HUB (VAR.331329-332329-335329) (04) - FRONT AXLE & STEERING

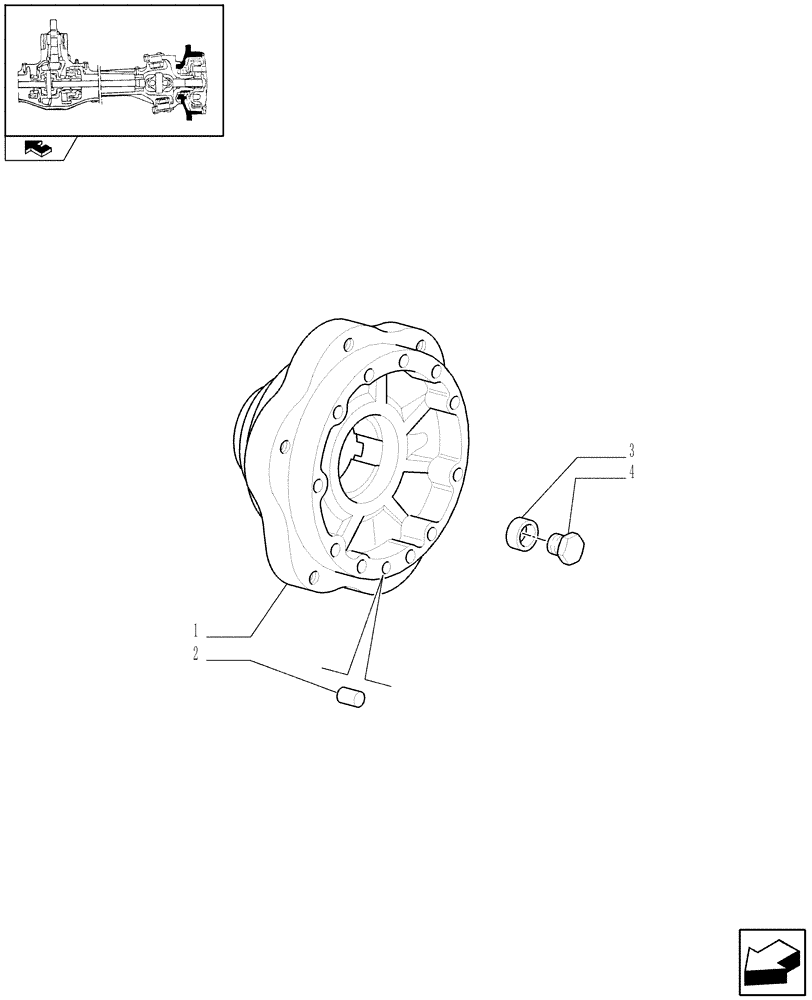

Схема запчастей Case IH FARMALL 75C - (1.40.6/03) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK WITH FRONT BRAKE (40 KM/H) - HUB (VAR.331329-332329-335329) (04) - FRONT AXLE & STEERING
2
4
1
home
3

Артикул

Название

Примечание

Количество

1

87601194

HUB

1шт.

2

4988170

PIN,10mm OD x 20mm L

M10 x 20

2шт.

3

10282260

SEAL,28.4mm ID x 36mm OD x 1.5mm Thk

2шт.

4

10278340

PLUG,M28 x 1.5 x 11, Brass

2шт.

Выбрано товаров: 4
