Запчасти Case IH FARMALL 75C (1.40.6/02) - FRONT AXLE WITH ELECTROHYD.DIFF.LOCK WITH FRONT BRAKE (40 KM/H)-STEERING KNUCKLE (VAR.331329-332329-335329) (04) - FRONT AXLE & STEERING

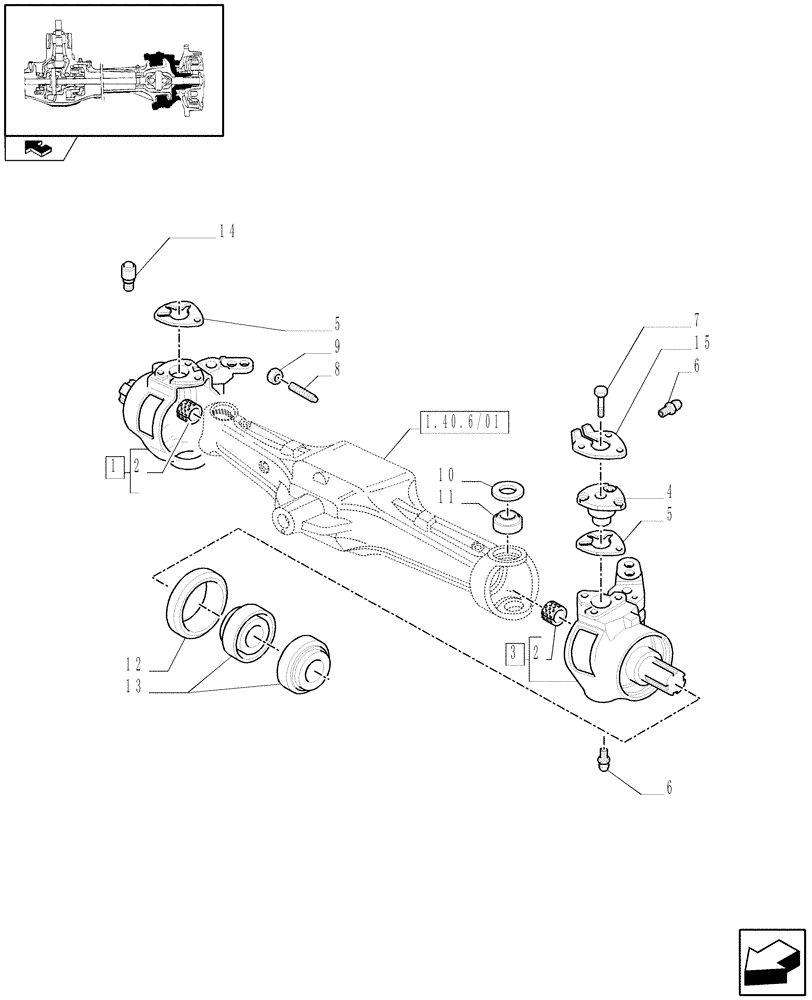

Схема запчастей Case IH FARMALL 75C - (1.40.6/02) - FRONT AXLE WITH ELECTROHYD.DIFF.LOCK WITH FRONT BRAKE (40 KM/H)-STEERING KNUCKLE (VAR.331329-332329-335329) (04) - FRONT AXLE & STEERING
6
1.40.6/01
12
15
8
13
9
2
4
5
6
10
5
2
11
14
3
1
home
7

Артикул

Название

Примечание

Количество

1

47125383

STUB AXLE/STEERING S

RH ASSY

1шт.

2

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

45 x 50 x 30

2шт.

3

47125380

STUB AXLE/STEERING S

LH ASSY

1шт.

4

5165271

BALL STUD,M14 x 1.5 x 46mm

BALL PIN

4шт.

5

5100789

SHIM,53mm ID x 86mm OD x 0.1mm Thk

1шт.

5

5100790

SHIM,53mm ID x 75mm OD x 0.15mm Thk

1шт.

5

5100791

SHIM,.20mm Thk

1шт.

5

5100792

SHIM,.25mm Thk

1шт.

5

5100793

SHIM,.30mm Thk

1шт.

6

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

6

13407211

LUBE NIPPLE,M10 x 1

2шт.

7

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

7

14233934

BOLT,Hex, M10 x 1.25 x 45mm, Cl 10.9

4шт.

7

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.

8

87751873

SCREW,M18 x 105mm, Cl 10.9

M18 x 98

2шт.

8

87751871

ADJUSTMENT SCREW,M18 x 67mm, Cl 10.9

M18 x 60

2шт.

9

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

10

5122548

SEAL,50mm ID x 62mm OD x 7mm Thk

50 x 62 x 7

4шт.

11

24903780

TAPERED BEARING,30mm ID x 55mm OD x 17mm W

30 x 55 x 17

4шт.

12

87309584

OIL SEAL,165mm ID x 190mm OD x 16.5mm Thk

2шт.

13

5136951

TAPERED BEARING,95mm ID x 135mm OD x 20mm W

95 x 135 x 20

4шт.

14

13413290

BREATHER

2шт.

15

87498939

PLATE

2шт.

Выбрано товаров: 23
