Запчасти Case IH FARMALL 75C (1.40.5/10[01]) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK (40 KM/H) - HALF AXLE (VAR.331323-332323) (04) - FRONT AXLE & STEERING

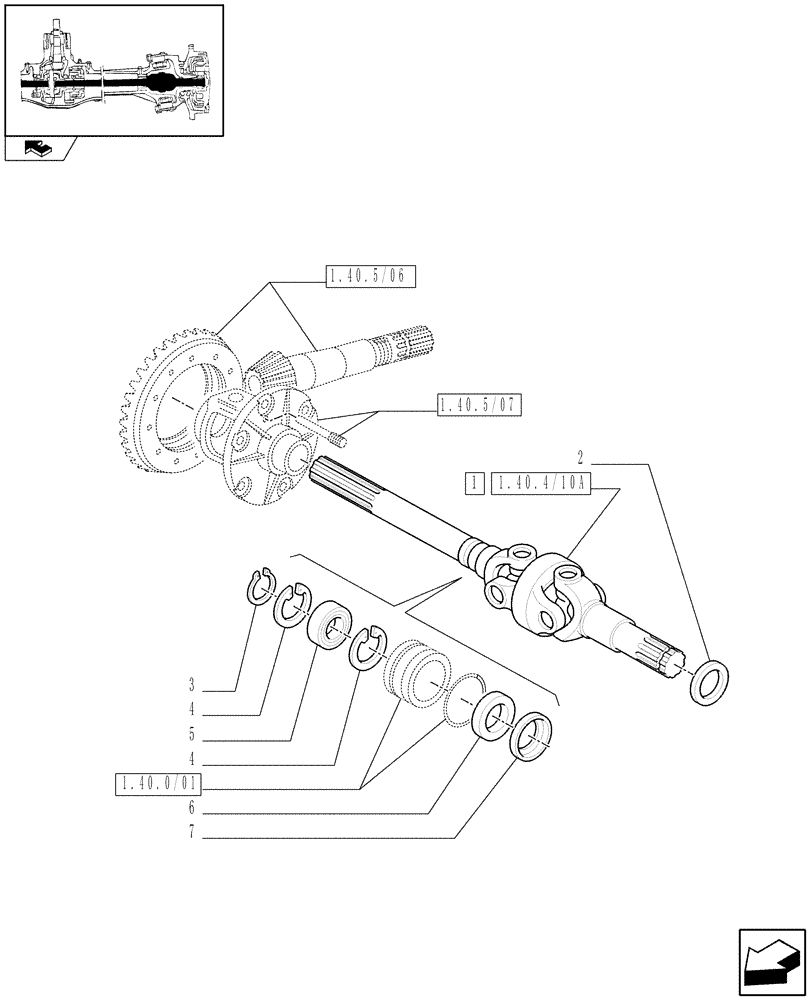

Схема запчастей Case IH FARMALL 75C - (1.40.5/10[01]) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK (40 KM/H) - HALF AXLE (VAR.331323-332323) (04) - FRONT AXLE & STEERING
home
1.40.4/10a
2
1
1.40.5/07
1.40.0/01
1.40.5/06
4
5
6
3
7
4

Артикул

Название

Примечание

Количество

1

5186653

AXLE-SHAFT, ARTICULA

LH

1шт.

1

5186654

AXLE-SHAFT, ARTICULA

RH

1шт.

2

5184124

SHAFT SEAL,47mm ID x 65mm OD x 16.5mm Thk

65 x 47 x 16.5

2шт.

3

370003

SNAP RING,M30, External

2шт.

4

11060676

CIRCLIP,M55, Int

4шт.

5

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

M30 x 55 x 13

2шт.

6

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

2шт.

7

4997436

RETAINER,35.2mm ID x 55mm OD

2шт.

Выбрано товаров: 8
