Запчасти Case IH FARMALL 75C (1.40.4/10[02]) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK (30 KM/H) - EPICYCLIC REDUCTION GEAR (VAR.335323) (04) - FRONT AXLE & STEERING

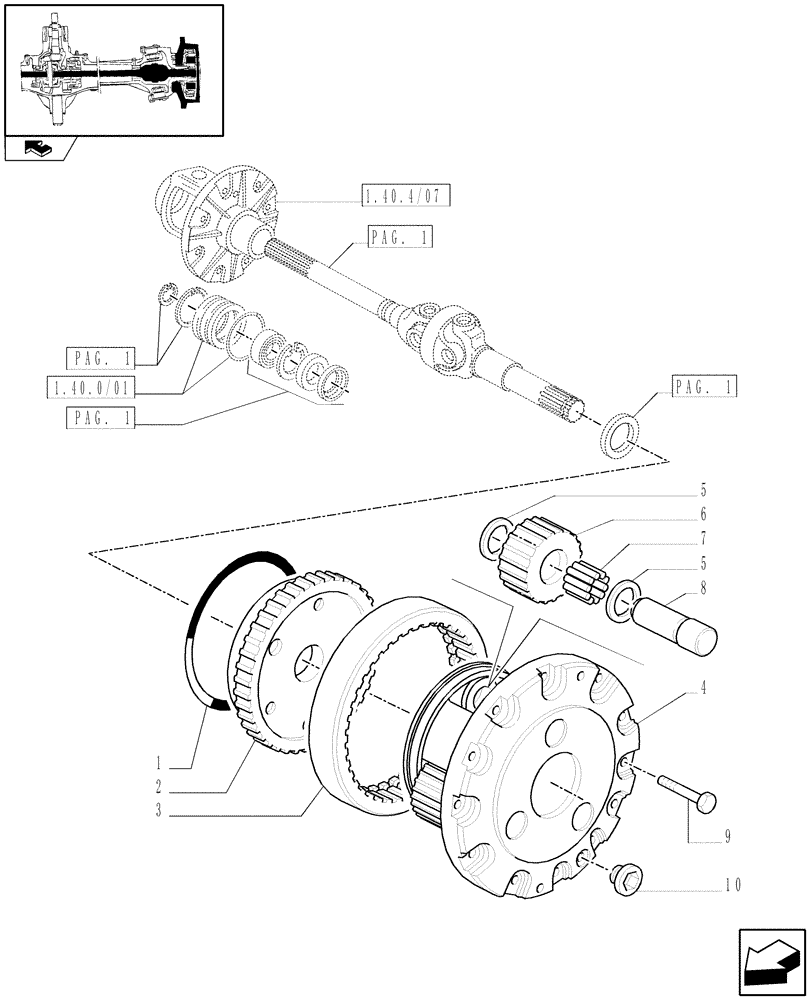

Схема запчастей Case IH FARMALL 75C - (1.40.4/10[02]) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK (30 KM/H) - EPICYCLIC REDUCTION GEAR (VAR.335323) (04) - FRONT AXLE & STEERING
7
5
2
home
pag. 1
pag. 1
pag. 1
pag. 1
1.40.4/07
9
6
10
1
1.40.0/01
5
8
3
4

Артикул

Название

Примечание

Количество

1

5165162

SNAP RING,M50, Int

2шт.

2

5173284

GEAR,60T

2шт.

3

5165273

RING GEAR,60T

2шт.

4

5181049

SUPPORT

2шт.

5

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

25 x 45 x 0.8

6шт.

6

5169137

GEAR,23T

3шт.

7

87565312

NEEDLE BEARING,25.6mm ID x 35.6mm OD x 29.8mm W

25.6 x 35.6 x 29.8

3шт.

8

5181050

PIN,27mm OD x 63.5mm L

3шт.

9

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

20шт.

10

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

Выбрано товаров: 10
