Запчасти Case IH FARMALL 75C (1.40.4/08[02]) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK (30 KM/H) - HYDRAULIC DIFF. LOCK CONTROL (VAR.335323) (04) - FRONT AXLE & STEERING

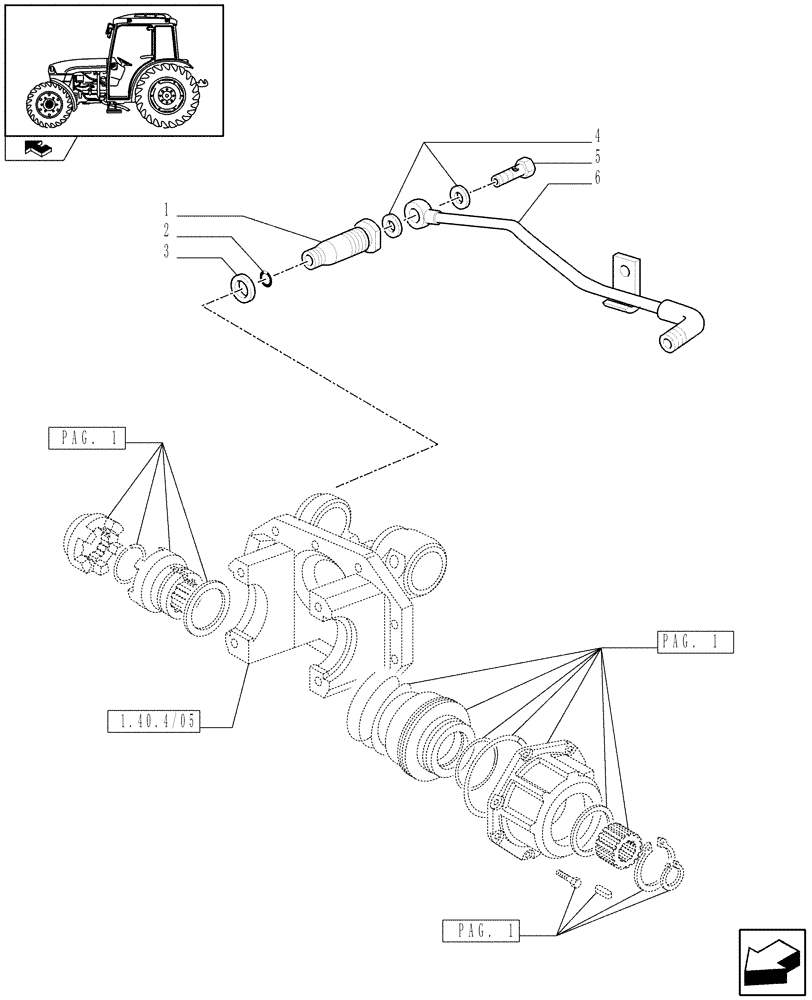

Схема запчастей Case IH FARMALL 75C - (1.40.4/08[02]) - FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK (30 KM/H) - HYDRAULIC DIFF. LOCK CONTROL (VAR.335323) (04) - FRONT AXLE & STEERING
1
home
pag. 1
pag. 1
pag. 1
4
2
6
1.40.4/05
3
5

Артикул

Название

Примечание

Количество

1

5167725

HYD CONNECTOR,M14/22 x 1.5 x 38mm L

1шт.

2

272217

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

3

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

23.5 x 30 x 1.5

1шт.

4

2852356

SEALING WASHER

14 x 20 x 1.5

2шт.

5

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14 x 1.5

1шт.

6

47124182

RIGID TUBE

1шт.

Выбрано товаров: 6
