Запчасти Case IH FARMALL 75C (1.40.3/10[02]) - FRONT AXLE WITH LIMITED SLIP DIFF., WITH FRONT BRAKE (40 KM/H) - DIFFER. GEARS AND SHAFT (VAR.331324) (04) - FRONT AXLE & STEERING

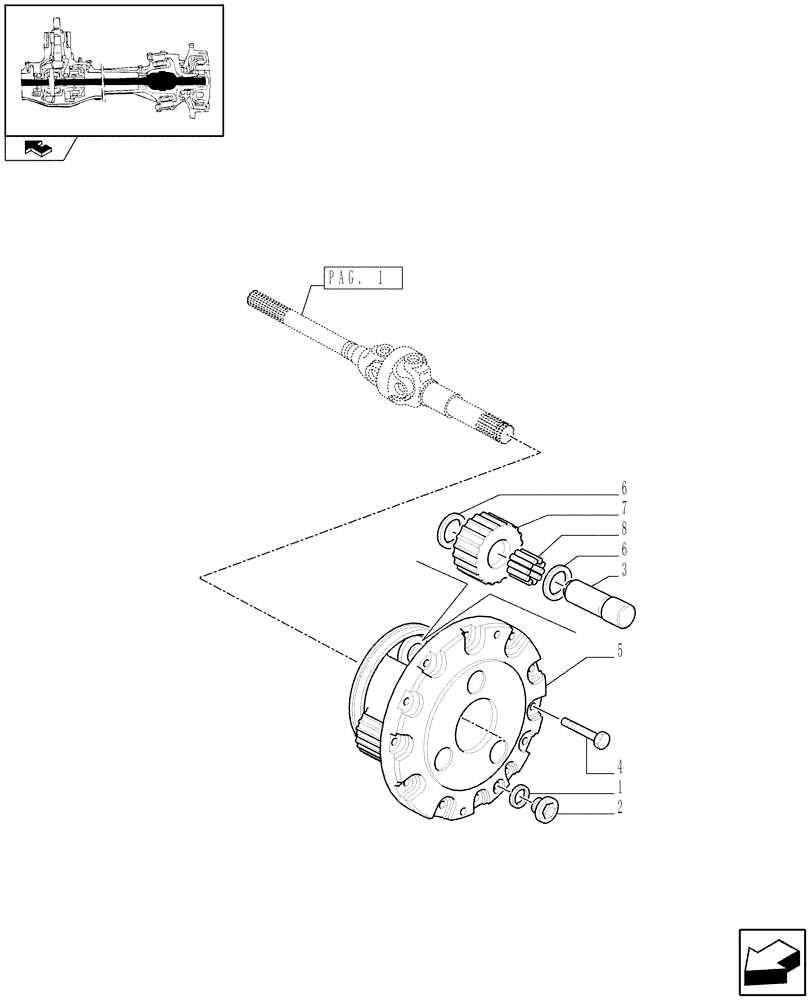

Схема запчастей Case IH FARMALL 75C - (1.40.3/10[02]) - FRONT AXLE WITH LIMITED SLIP DIFF., WITH FRONT BRAKE (40 KM/H) - DIFFER. GEARS AND SHAFT (VAR.331324) (04) - FRONT AXLE & STEERING
3
5
1
7
4
home
pag. 1
2
6
8
6

Артикул

Название

Примечание

Количество

1

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

2

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

3

5181050

PIN,27mm OD x 63.5mm L

3шт.

4

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

20шт.

5

5181049

SUPPORT

ASSY

1шт.

6

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

MM.0.8

6шт.

7

5169137

GEAR,23T

3шт.

8

87565312

NEEDLE BEARING,25.6mm ID x 35.6mm OD x 29.8mm W

3шт.

Выбрано товаров: 8
