Запчасти Case IH FARMALL 75C (1.40.3/01) - FRONT AXLE WITH LIMITED SLIP DIFF., WITH FRONT BRAKE (40 KM/H) - BOX (VAR.331324) (04) - FRONT AXLE & STEERING

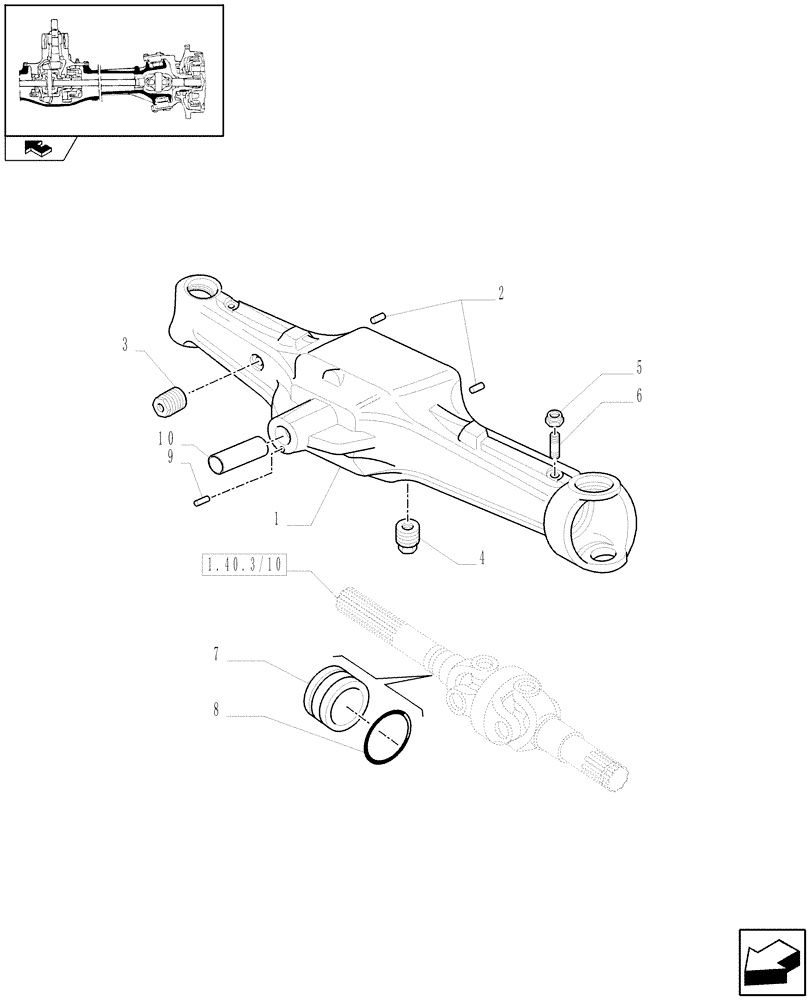

Схема запчастей Case IH FARMALL 75C - (1.40.3/01) - FRONT AXLE WITH LIMITED SLIP DIFF., WITH FRONT BRAKE (40 KM/H) - BOX (VAR.331324) (04) - FRONT AXLE & STEERING
1
home
8
4
3
6
9
5
7
2
1.40.3/10
10

Артикул

Название

Примечание

Количество

1

47131423

AXLE HOUSING

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

4

14326211

PLUG,M22 x 1.50, R50, ZND

Magnetic

1шт.

5

16101524

NUT,M12 x 1.25, Cl 10

2шт.

6

87309002

SET SCREW

M12 x 1.25 x 64

2шт.

7

87371275

BUSHING,55mm ID x 75mm OD x 38mm L

4шт.

8

14464980

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

2шт.

9

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

10

47123533

PIN,52mm OD x 131mm L

1шт.

Выбрано товаров: 10
