(1.40.0/10A) - 4WD FRONT AXLE - DIFFERENTIAL SHAFT - BREAKDOWN

Запчасти Case IH FARMALL 75C (1.40.0/10A) - 4WD FRONT AXLE - DIFFERENTIAL SHAFT - BREAKDOWN (04) - FRONT AXLE & STEERING

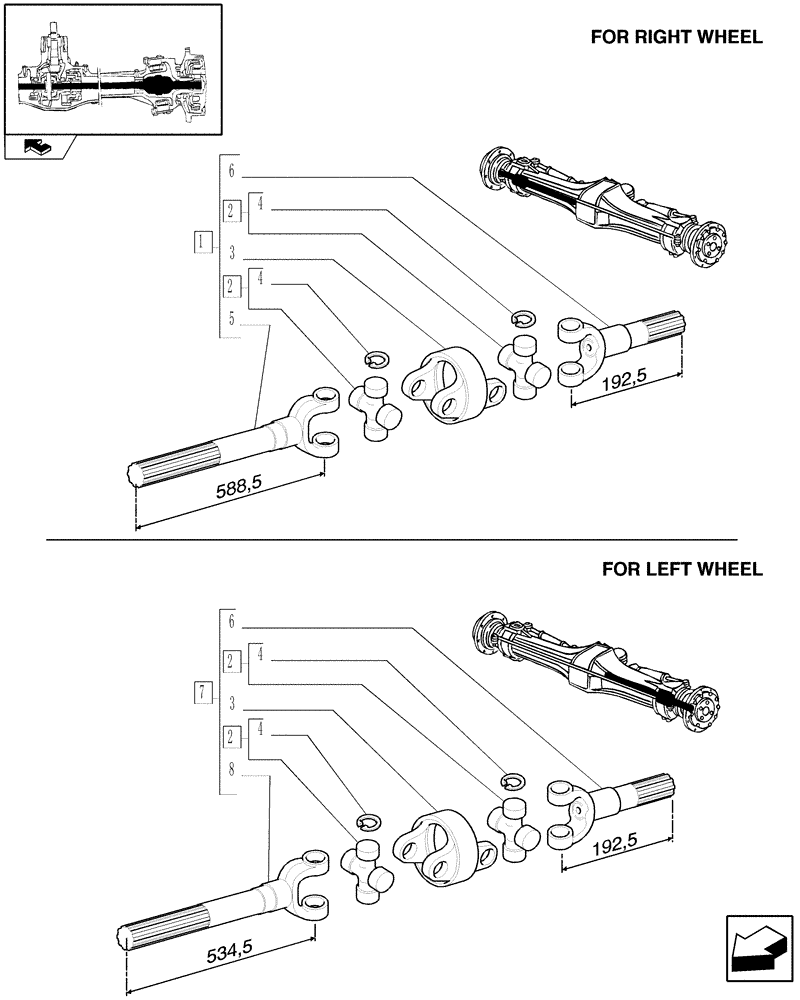

Схема запчастей Case IH FARMALL 75C - (1.40.0/10A) - 4WD FRONT AXLE - DIFFERENTIAL SHAFT - BREAKDOWN (04) - FRONT AXLE & STEERING
8
7
1
4
6
home
2
5
3
4
2
4
6
4
2
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5186652

AXLE-SHAFT, ARTICULA

RH

1шт.

2

5191024

SPIDER

2шт.

3

5191027

YOKE

1шт.

4

5191025

LOCKING RING

8шт.

5

5191421

YOKE

1шт.

6

5191412

SHAFT

1шт.

7

5186653

AXLE-SHAFT, ARTICULA

LH

1шт.

8

5191420

YOKE

1шт.
